Submitted by Drame on Fri, 30/05/2025 - 15:42

Duration:

00:05:27

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	208.997 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	302.662 RPM	n_nom
Nominal tip speed ratio	3.80143	tsr_nom
RPM at the cut-in wind speed (Flux Linkage)	209 RPM	cutin_RPM
Cut-in Voltage (Flux Linkage)	24 V	cutin_Voltage
Wind speed at cut-in RPM (Flux Linkage)	3.00005 m/s	cutin_Vw
Mechanical power (Torque)	756.556 W	Pmech_Torque_x

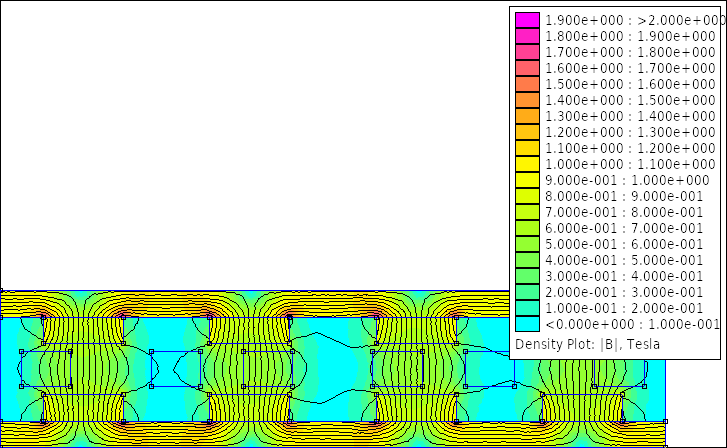

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.481132	ai
Inner-to-outer magnet radius	0.676251	kd
Flux density in airgap	0.577577 T	Bmax
Flux density on magnet surface	0.645351 T	Bmg
First harmonic of flux density in airgap	0.47046 T	Bp
Flux per pole (Calculated)	0.000900053 Wb	Flux_pole
Magnets on a rotor disk	12	magnet_num
Distance between magnets	20.3101 mm	dist_magnet_Rin
Magnet mass	2484 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	13800 mm3	Vmag
Volume of all magnets	331200 mm3	VolumeMagnet
Remanent magnetic flux density	1.265 T	Br
Magnetic coercivity	982324 A/m	Hc
Maximum Energy Product	326 KJ/m³	BHmax
Outer diameter	285.75 mm	Dout
Average radius	119.085 mm	Ravg
Inner radius	96.0853 mm	Rin
Outer radius	142.875 mm	Rout
Effective outer radius	142.085 mm	Rout_eff
Mass of rotor disks	10.0941 kgr	BackIronMass
Volume of rotor disks	1282.6 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	1.11638 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	13 mm	tw
Number of phases	3	nphase
Number of coils per phase	3	q
Total number of coils in stator	9	coil_num
Number of turns per coil	43	Nc
Copper wire diameter	1.4 mm	dc
Number of wires at hand	2	No_wires_at_hand
Winding fill factor	0.55	kf
Copper wire cross-sectional area	3.08 mm2	sc
Copper wire cross-sectional area (Calculated)	3.06023 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	1.54 mm²	sc_multi_wires
Copper wire diameter (Calculated)	1.97443 mm	dc_theor
Coil leg width	18.5231 mm	wc
Average length of coil turn	210.162 mm	lavg
Stator nominal temperature	71.5883 C°	tc_real
Stator surface area	700.714 cm²	stator_surface_area
Heat coefficient	0.253817	cq_real
Current density	5.96148 A	Jmax_real
Resistivity of copper at nominal temperature	1.99773E-8 Ohm.m	pt
Resistance of a single coil	0.058615 Ohm	Rc
Phase resistance	0.175845 Ohm	Rphase
Phase inductance	0.000401861 H	Ls
Nagaoka constant	0.213231	Kn
Winding coefficient	0.95	kw
Volume of a single coil	50607.1 mm3	coil_volume
Weight of a single coil	260.409 g	coil_weight_constr
Coil hole at Ravg	30 mm	coil_hole_Ravg
Coil hole at Rin	30 mm	coil_hole_Rin_constr
Coil hole at Rout	30 mm	coil_hole_Rout_constr
Coil mass for construction	2.60409 kgr	mcu_constr
RMS flux linkage of phase A	0.0253122 Wb	FluxRmsA
RMS flux linkage of phase B	0.0247933 Wb	FluxRmsB
RMS flux linkage of phase C	0.0252271 Wb	FluxRmsC
EMF at the cut-in wind speed (Calculated)	10.264 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	14.8246 V	EMF_nom
RMS of EMF of phase A (Flux Linkage)	14.1974 V	V_rmsA
RMS of EMF of phase B (Flux Linkage)	14.3556 V	V_rmsB
RMS of EMF of phase C (Flux Linkage)	14.2138 V	V_rmsC
Current at the nominal wind speed	18.3614 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	30.2662 Hz	fnom
Generator power (Calculated)	621.921 W	Pnom
Generator power (Torque)	563.298 W	PelN_Torque_x
Electromagnetic power (Torque)	744.698 W	PHMN_Torque_x
Copper losses (Calculated)	177.853 W	Pcopper
Copper losses (Torque)	177.853 W	PcopperN_Torque_x
Eddy current losses (Torque)	3.54732 W	PeddyN_Torque_x
Generator efficiency (Torque)	0.744555	efftotalN_Torque_x
Generator efficiency (Calculated)	0.756176	efficiency_real
AC Power at the rectifier (Calculated)	559.729 W	Pnom_rect
AC Power at the rectifier (Torque)	506.968 W	PelN_Torque_x_rect
DC Power at the batteries (Calculated)	503.756 W	Pnom_dc
DC Power at the batteries (Torque)	456.271 W	PelN_Torque_x_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Calculated)	11.8582 W	Prot
Rotational losses (Torque)	11.8582 W	ProtN_Torque_x

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	358.189 EUR	Totalcost
Total generator mass	16.8313 kgr	TotalMass
Total generator volume	3.78367 dm3	TotalVolume
Blade rotor mass	3.30317 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	230.554 EUR	Magcost
Magnet shipping cost	20 EUR	shippingcost
Copper mass	2.23952 kgr	mcu
Cost of copper	33.0553 EUR	coppercost
Resin mass	2.01376 kgr	resinmass
Cost of resin	27.8158 EUR	resincost
Resin volume	1480.7 cm3	ResinVolume
Total mass of one generator rotor	6.28903 kgr	TotalMassRotor
Cost of iron	12.4157 EUR	ironcost
Surface area of moulds	0.343103 m2	woodS
Total cost of moulds	54.3475 EUR	woodcost

Revolutions per minute (RPM)
0
302.661968

I_RMS (A)
0
18.361356

Output files

Octave/Matlab variable file:

simulation-9875.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

1.20m

Aerodynamic coefficient:

0.30

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

8.75

Design TSR:

7.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N40

Number of generator poles:

Magnet length:

46mm

Magnet width:

30mm

Magnet thickness:

10mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

10mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Rectangular

Winding fill factor:

User defined

Winding fill factor:

0.55

Stator thickness:

User defined

Stator thickness:

13mm

Current density:

6.00A/mm2

System Inputs

System voltage:

24.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

true

Simulation step:

Current step:

RPM Step:

Mesh size:

Automesh

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
