20 Pole (Rect Coil) 75x50x20 Ferrite Piggott (3.6F) CoP=0.37 TSR=6.25 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by tlangdon12 on Sat, 08/03/2025 - 19:35

Duration:

00:00:55

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	167.197 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	331.741 RPM	n_nom
Nominal tip speed ratio	6.25	tsr_nom

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	8 mm	hr
Magnet width-to-pole pitch ratio	0.707875	ai
Inner-to-outer magnet radius	0.714106	kd

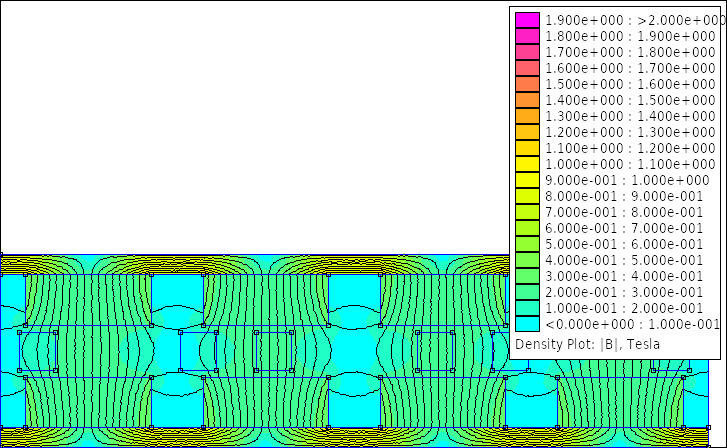

Flux density in airgap	0.216651 T	Bmax
Flux density on magnet surface	0.219905 T	Bmg
First harmonic of flux density in airgap	0.219323 T	Bp
Flux per pole (Calculated)	0.000831711 Wb	Flux_pole
Magnets on a rotor disk	20	magnet_num
Distance between magnets	8.8529 mm	dist_magnet_Rin
Magnet mass	15000 g	MagnetMass
Magnet density	5 g/cm3	mag_density
Volume of a single magnet	75000 mm3	Vmag
Volume of all magnets	3000000 mm3	VolumeMagnet
Remanent magnetic flux density	0.39 T	Br
Magnetic coercivity	227950 A/m	Hc
Maximum Energy Product	30 KJ/m³	BHmax
Outer diameter	527.046 mm	Dout
Average radius	224.835 mm	Ravg
Inner radius	187.335 mm	Rin
Outer radius	263.523 mm	Rout
Effective outer radius	262.335 mm	Rout_eff
Mass of rotor disks	27.4715 kgr	BackIronMass
Volume of rotor disks	3490.66 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.85583 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	15 mm	tw
Number of phases	3	nphase
Number of coils per phase	5	q
Total number of coils in stator	15	coil_num
Number of turns per coil	140	Nc
Copper wire diameter	1.12 mm	dc
Number of wires at hand	1	No_wires_at_hand
Winding fill factor	0.65	kf
Copper wire cross-sectional area	0.99 mm2	sc
Copper wire cross-sectional area (Calculated)	0.927268 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	0.99 mm²	sc_multi_wires
Copper wire diameter (Calculated)	1.08685 mm	dc_theor
Coil leg width	14.2154 mm	wc
Average length of coil turn	294.636 mm	lavg
Stator nominal temperature	91.088 C°	tc_real
Stator surface area	1256.51 cm²	stator_surface_area
Heat coefficient	0.329227	cq_real
Current density	5.61981 A	Jmax_real
Resistivity of copper at nominal temperature	2.13835E-8 Ohm.m	pt
Resistance of a single coil	0.890958 Ohm	Rc
Phase resistance	4.45479 Ohm	Rphase
Phase inductance	0.0120503 H	Ls
Nagaoka constant	0.212466	Kn
Winding coefficient	0.95	kw
Volume of a single coil	62825.5 mm3	coil_volume
Weight of a single coil	370.295 g	coil_weight_constr
Coil hole at Ravg	50 mm	coil_hole_Ravg
Coil hole at Rin	50 mm	coil_hole_Rin_constr
Coil hole at Rout	50 mm	coil_hole_Rout_constr
Coil mass for construction	5.92471 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	68.4267 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	135.767 V	EMF_nom
Current at the nominal wind speed	5.56361 A	Iac_nom
Terminal voltage at the nominal wind speed	176.199 V	V_term_line
Nominal frequency	55.2902 Hz	fnom
Generator power (Calculated)	1814.86 W	Pnom
Copper losses (Calculated)	413.677 W	Pcopper
Eddy current losses (Calculated)	5.8573 W	Peddy
Generator efficiency (Calculated)	0.797563	efficiency_real
AC Power at the rectifier (Calculated)	1760.41 W	Pnom_rect
DC Power at the batteries (Calculated)	1725.2 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	5	No_bolts_hub
Mass of bearing hub	8344.46 g	BearingHubMass
Rotational losses (Calculated)	41.1121 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	501.332 EUR	Totalcost
Total generator mass	51.6245 kgr	TotalMass
Total generator volume	16.7988 dm3	TotalVolume
Blade rotor mass	11.1482 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	227.579 EUR	Magcost
Magnet shipping cost	181.159 EUR	shippingcost
Copper mass	5.47619 kgr	mcu
Cost of copper	80.8285 EUR	coppercost
Resin mass	3.67681 kgr	resinmass
Cost of resin	50.7874 EUR	resincost
Resin volume	2703.54 cm3	ResinVolume
Total mass of one generator rotor	21.2357 kgr	TotalMassRotor
Cost of iron	33.7899 EUR	ironcost
Surface area of moulds	0.684006 m2	woodS
Total cost of moulds	108.346 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-9733.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

1.80m

Aerodynamic coefficient:

0.37

Cut-in wind speed:

3.50m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

9.00

Design TSR:

6.25

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

Ferrite C8

Number of generator poles:

Magnet length:

75mm

Magnet width:

50mm

Magnet thickness:

20mm

Rotor disk thickness:

Calculated

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Rectangular

Winding fill factor:

Calculated

Stator thickness:

Calculated

Current density:

6.00A/mm2

System Inputs

System voltage:

160.00V

Nominal voltage:

400.00V

Transmission cable losses:

3.00%

Rectifier losses:

2.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
