Star Shape 20 pole Ferrite | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by gbroques on Sun, 22/12/2024 - 03:11

Duration:

00:01:15

Tabs

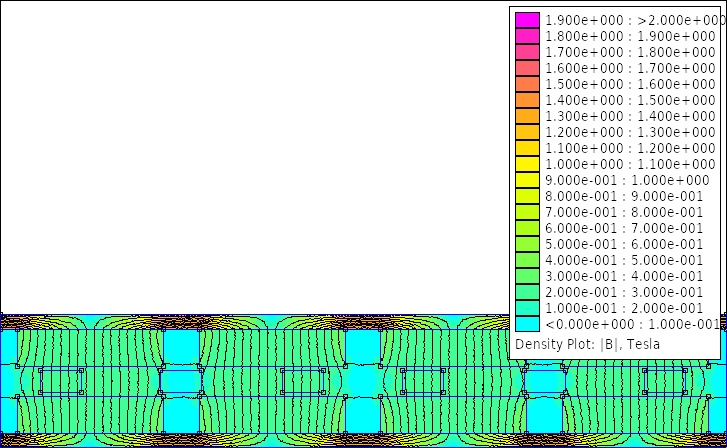

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	83.5987 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	135.631 RPM	n_nom
Nominal tip speed ratio	4.2588	tsr_nom

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.806049	ai
Inner-to-outer magnet radius	0.680784	kd
Flux density in airgap	0.253765 T	Bmax
Flux density on magnet surface	0.246812 T	Bmg
First harmonic of flux density in airgap	0.281862 T	Bp
Flux per pole (Calculated)	0.00374221 Wb	Flux_pole
Magnets on a rotor disk	20	magnet_num
Distance between magnets	0.5 mm	dist_magnet_Rin
Magnet mass	75000 g	MagnetMass
Magnet density	5 g/cm3	mag_density
Volume of a single magnet	375000 mm3	Vmag
Volume of all magnets	15000000 mm3	VolumeMagnet
Remanent magnetic flux density	0.39 T	Br
Magnetic coercivity	227950 A/m	Hc
Maximum Energy Product	30 KJ/m³	BHmax
Outer diameter	945.108 mm	Dout
Average radius	394.901 mm	Ravg
Inner radius	319.901 mm	Rin
Outer radius	472.554 mm	Rout
Effective outer radius	469.901 mm	Rout_eff
Mass of rotor disks	110.423 kgr	BackIronMass
Volume of rotor disks	14030.8 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	1.38498 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	15 mm	tw
Number of phases	3	nphase
Number of coils per phase	5	q
Total number of coils in stator	15	coil_num
Number of turns per coil	13	Nc
Copper wire diameter	1.8 mm	dc
Number of wires at hand	7	No_wires_at_hand
Winding fill factor	0.55	kf
Copper wire cross-sectional area	17.78 mm2	sc
Copper wire cross-sectional area (Calculated)	17.4536 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	2.54 mm²	sc_multi_wires
Copper wire diameter (Calculated)	4.71528 mm	dc_theor
Coil leg width	28.017 mm	wc
Average length of coil turn	550.432 mm	lavg
Stator nominal temperature	83.2904 C°	tc_real
Stator surface area	4626.43 cm²	stator_surface_area
Heat coefficient	0.300228	cq_real
Current density	5.88985 A	Jmax_real
Resistivity of copper at nominal temperature	2.09807E-8 Ohm.m	pt
Resistance of a single coil	0.00844373 Ohm	Rc
Phase resistance	0.0422187 Ohm	Rphase
Phase inductance	0.000215295 H	Ls
Nagaoka constant	0.126143	Kn
Winding coefficient	0.665335	kw
Volume of a single coil	231321 mm3	coil_volume
Weight of a single coil	1312.39 g	coil_weight_constr
Coil hole at Ravg	54 mm	coil_hole_Ravg
Coil hole at Rin	8 mm	coil_hole_Rin_constr
Coil hole at Rout	100 mm	coil_hole_Rout_constr
Coil mass for construction	20.9983 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	10.264 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	16.2455 V	EMF_nom
Current at the nominal wind speed	104.721 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	22.6051 Hz	fnom
Generator power (Calculated)	3547.04 W	Pnom
Copper losses (Calculated)	1388.98 W	Pcopper
Eddy current losses (Calculated)	108.438 W	Peddy
Generator efficiency (Calculated)	0.693779	efficiency_real
AC Power at the rectifier (Calculated)	3192.34 W	Pnom_rect
DC Power at the batteries (Calculated)	2873.11 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	6	No_bolts_hub
Mass of bearing hub	14290.7 g	BearingHubMass
Rotational losses (Calculated)	68.1749 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	1758.34 EUR	Totalcost
Total generator mass	206.315 kgr	TotalMass
Total generator volume	63.8402 dm3	TotalVolume
Blade rotor mass	51.6121 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	1072.22 EUR	Magcost
Magnet shipping cost	905.797 EUR	shippingcost
Copper mass	17.0611 kgr	mcu
Cost of copper	251.822 EUR	coppercost
Resin mass	3.83111 kgr	resinmass
Cost of resin	52.9188 EUR	resincost
Resin volume	2817 cm3	ResinVolume
Total mass of one generator rotor	92.7113 kgr	TotalMassRotor
Cost of iron	135.82 EUR	ironcost
Surface area of moulds	1.55029 m2	woodS
Total cost of moulds	245.567 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-9578.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

3.00m

Aerodynamic coefficient:

0.30

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

8.75

Design TSR:

7.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

Ferrite C8

Number of generator poles:

Magnet length:

150mm

Magnet width:

100mm

Magnet thickness:

25mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

10mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Triangular

Winder bolt size:

8.00mm

Winding fill factor:

User defined

Winding fill factor:

0.55

Stator thickness:

User defined

Stator thickness:

15mm

Current density:

6.00A/mm2

System Inputs

System voltage:

24.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
