1.35 75X50X20 16 Triangular 420mm 67v | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by JoaoA1977 on Fri, 20/01/2023 - 10:50

Duration:

00:08:11

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	185.775 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	373.673 RPM	n_nom
Nominal tip speed ratio	4.4	tsr_nom
RPM at the cut-in wind speed (Flux Linkage)	177 RPM	cutin_RPM
Cut-in Voltage (Flux Linkage)	67 V	cutin_Voltage
Wind speed at cut-in RPM (Flux Linkage)	2.8583 m/s	cutin_Vw
Mechanical power (Torque)	2618.57 W	Pmech_Torque_x

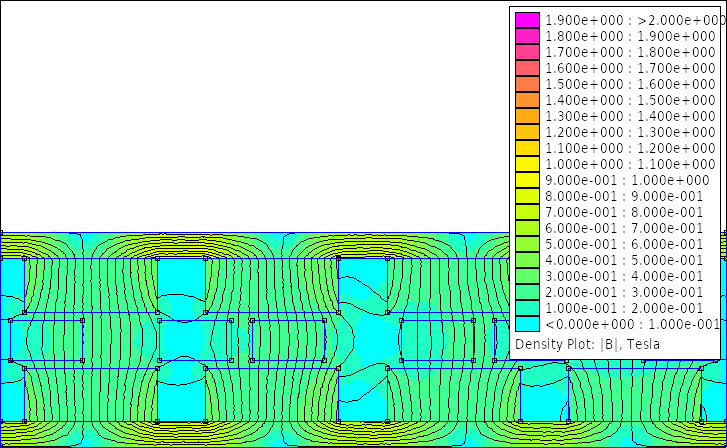

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.733828	ai
Inner-to-outer magnet radius	0.664279	kd
Flux density in airgap	0.216041 T	Bmax
Flux density on magnet surface	0.219338 T	Bmg
First harmonic of flux density in airgap	0.22073 T	Bp
Flux per pole (Calculated)	0.000778324 Wb	Flux_pole
Magnets on a rotor disk	16	magnet_num
Distance between magnets	4.3914 mm	dist_magnet_Rin
Magnet mass	11200 g	MagnetMass
Magnet density	5 g/cm3	mag_density
Volume of a single magnet	70000 mm3	Vmag
Volume of all magnets	2240000 mm3	VolumeMagnet
Remanent magnetic flux density	0.39 T	Br
Magnetic coercivity	227950 A/m	Hc
Maximum Energy Product	30 KJ/m³	BHmax
Outer diameter	420 mm	Dout
Average radius	173.507 mm	Ravg
Inner radius	138.507 mm	Rin
Outer radius	210 mm	Rout
Effective outer radius	208.507 mm	Rout_eff
Mass of rotor disks	21.8069 kgr	BackIronMass
Volume of rotor disks	2770.88 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.68816 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	15 mm	tw
Number of phases	3	nphase
Number of coils per phase	4	q
Total number of coils in stator	12	coil_num
Number of turns per coil	106	Nc
Copper wire diameter	1.9 mm	dc
Number of wires at hand	1	No_wires_at_hand
Winding fill factor	0.75	kf
Copper wire cross-sectional area	2.83529 mm2	sc
Copper wire diameter (Calculated)	1.9 mm	dc_theor
Coil leg width	27 mm	wc
Average length of coil turn	278.183 mm	lavg
Stator nominal temperature	57.7 C°	tc_real
Stator surface area	1802.62 cm²	stator_surface_area
Heat coefficient	0.277207	cq_real
Current density	5.11412 A	Jmax_real
Resistivity of copper at nominal temperature	1.92472E-8 Ohm.m	pt
Resistance of a single coil	0.200173 Ohm	Rc
Phase resistance	0.800692 Ohm	Rphase
Phase inductance	0.00432299 H	Ls
Nagaoka constant	0.186442	Kn
Volume of a single coil	112664 mm3	coil_volume
Weight of a single coil	761.532 g	coil_weight_constr
Coil hole at Rin	8 mm	coil_hole_Rin_constr
Coil hole at Rout	50 mm	coil_hole_Rout_constr
Coil mass for construction	9.89992 kgr	mcu_constr
RMS flux linkage of phase A	0.048414 Wb	FluxRmsA
RMS flux linkage of phase B	0.0473195 Wb	FluxRmsB
RMS flux linkage of phase C	0.0477745 Wb	FluxRmsC
EMF at the cut-in wind speed (Calculated)	28.6537 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	57.6348 V	EMF_nom
RMS of EMF of phase A (Flux Linkage)	59.132 V	V_rmsA
RMS of EMF of phase B (Flux Linkage)	59.7305 V	V_rmsB
RMS of EMF of phase C (Flux Linkage)	59.5314 V	V_rmsC
Current at the nominal wind speed	14.5 A	Iac_nom
Nominal frequency	49.8231 Hz	fnom
Generator power (Torque)	2075.51 W	PelN_Torque_x
Electromagnetic power (Torque)	2587.61 W	PHMN_Torque_x
Copper losses (Torque)	505.036 W	PcopperN_Torque_x
Eddy current losses (Torque)	7.06505 W	PeddyN_Torque_x
Generator efficiency (Torque)	0.792613	efftotalN_Torque_x
AC Power at the rectifier (Torque)	1867.96 W	PelN_Torque_x_rect
DC Power at the batteries (Torque)	1681.16 W	PelN_Torque_x_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Torque)	30.9541 W	ProtN_Torque_x

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	444.624 EUR	Totalcost
Total generator mass	44.3289 kgr	TotalMass
Total generator volume	11.2221 dm3	TotalVolume
Blade rotor mass	4.70315 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	170.802 EUR	Magcost
Magnet shipping cost	135.266 EUR	shippingcost
Copper mass	8.96916 kgr	mcu
Cost of copper	132.385 EUR	coppercost
Resin mass	2.35293 kgr	resinmass
Cost of resin	32.5008 EUR	resincost
Resin volume	1730.09 cm3	ResinVolume
Total mass of one generator rotor	16.5034 kgr	TotalMassRotor
Cost of iron	26.8224 EUR	ironcost
Surface area of moulds	0.5184 m2	woodS
Total cost of moulds	82.1146 EUR	woodcost

Revolutions per minute (RPM)
0
373.673036

I_RMS (A)
0
14.5

Output files

Octave/Matlab variable file:

simulation-8042.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

1.35m

Cut-in wind speed:

3.00m/s

Nominal wind speed:

12.00m/s

Cut-in TSR:

8.75

Nominal TSR:

4.40

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Outer diameter:

420.00mm

Magnetic material:

Ferrite C8

Number of generator poles:

Magnet length:

70mm

Magnet width:

50mm

Magnet thickness:

20mm

Rotor disk thickness:

10mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Triangular

Winder bolt size:

8.00mm

Winding fill factor:

0.75

Current at nominal wind speed:

14.50A

Stator thickness:

15mm

Number of turns per coil:

106

Copper wire diameter:

1.90mm

Number of wires at hand:

Coil leg width:

27mm

Stator nominal temperature:

57.70C°

System Inputs

System voltage:

67.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Simulation Radius:

Average radius

Simulation step:

Current step:

RPM Step:

Mesh size:

Automesh

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
