4.6N Grid Ghoramara FF 0.63 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by Kostas on Mon, 16/01/2023 - 09:36

Duration:

00:00:25

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	78.5101 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	270.008 RPM	n_nom
Nominal tip speed ratio	6.5	tsr_nom

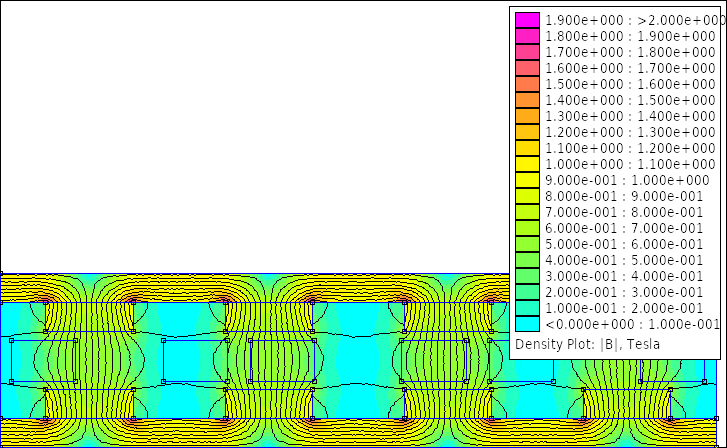

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.487008	ai
Inner-to-outer magnet radius	0.82191	kd
Flux density in airgap	0.556885 T	Bmax
Flux density on magnet surface	0.632977 T	Bmg
First harmonic of flux density in airgap	0.462606 T	Bp
Flux per pole (Calculated)	0.00087601 Wb	Flux_pole
Magnets on a rotor disk	24	magnet_num
Distance between magnets	25.5792 mm	dist_magnet_Rin
Magnet mass	4968 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	13800 mm3	Vmag
Volume of all magnets	662400 mm3	VolumeMagnet
Remanent magnetic flux density	1.265 T	Br
Magnetic coercivity	982324 A/m	Hc
Maximum Energy Product	326 KJ/m³	BHmax
Outer diameter	517.464 mm	Dout
Average radius	235.297 mm	Ravg
Inner radius	212.297 mm	Rin
Outer radius	258.732 mm	Rout
Effective outer radius	258.297 mm	Rout_eff
Mass of rotor disks	33.1021 kgr	BackIronMass
Volume of rotor disks	4206.11 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	1.10069 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	14 mm	tw
Number of phases	3	nphase
Number of coils per phase	6	q
Total number of coils in stator	18	coil_num
Number of turns per coil	246	Nc
Copper wire diameter	1 mm	dc
Number of wires at hand	1	No_wires_at_hand
Winding fill factor	0.63	kf
Copper wire cross-sectional area	0.79 mm2	sc
Copper wire cross-sectional area (Calculated)	0.772577 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	0.79 mm²	sc_multi_wires
Copper wire diameter (Calculated)	0.992056 mm	dc_theor
Coil leg width	22.034 mm	wc
Average length of coil turn	221.187 mm	lavg
Stator nominal temperature	72.6959 C°	tc_real
Stator surface area	1754.51 cm²	stator_surface_area
Heat coefficient	0.258377	cq_real
Current density	5.3787 A	Jmax_real
Resistivity of copper at nominal temperature	2.02517E-8 Ohm.m	pt
Resistance of a single coil	1.39485 Ohm	Rc
Phase resistance	8.36911 Ohm	Rphase
Phase inductance	0.0265152 H	Ls
Nagaoka constant	0.20897	Kn
Winding coefficient	0.95	kw
Volume of a single coil	68230.9 mm3	coil_volume
Weight of a single coil	387.414 g	coil_weight_constr
Coil hole at Ravg	30 mm	coil_hole_Ravg
Coil hole at Rin	30 mm	coil_hole_Rin_constr
Coil hole at Rout	30 mm	coil_hole_Rout_constr
Coil mass for construction	7.36087 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	85.5334 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	294.162 V	EMF_nom
Current at the nominal wind speed	4.24918 A	Iac_nom
Terminal voltage at the nominal wind speed	242.273 V	V_term_line
Nominal frequency	54.0017 Hz	fnom
Generator power (Calculated)	3225.68 W	Pnom
Copper losses (Calculated)	453.325 W	Pcopper
Eddy current losses (Calculated)	23.5639 W	Peddy
Generator efficiency (Calculated)	0.862437	efficiency_real
AC Power at the rectifier (Calculated)	3128.91 W	Pnom_rect
DC Power at the batteries (Calculated)	2972.46 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	5	No_bolts_hub
Mass of bearing hub	8344.46 g	BearingHubMass
Rotational losses (Calculated)	37.6243 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	768.033 EUR	Totalcost
Total generator mass	49.2051 kgr	TotalMass
Total generator volume	12.6183 dm3	TotalVolume
Blade rotor mass	23.2579 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	461.109 EUR	Magcost
Magnet shipping cost	40 EUR	shippingcost
Copper mass	6.91722 kgr	mcu
Cost of copper	102.098 EUR	coppercost
Resin mass	4.21783 kgr	resinmass
Cost of resin	58.2605 EUR	resincost
Resin volume	3101.35 cm3	ResinVolume
Total mass of one generator rotor	19.035 kgr	TotalMassRotor
Cost of iron	40.7155 EUR	ironcost
Surface area of moulds	0.668248 m2	woodS
Total cost of moulds	105.85 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-7925.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

2.30m

Aerodynamic coefficient:

0.38

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

6.30

Design TSR:

6.50

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N40

Number of generator poles:

Magnet length:

46mm

Magnet width:

30mm

Magnet thickness:

10mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

10mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Rectangular

Winding fill factor:

User defined

Winding fill factor:

0.63

Stator thickness:

User defined

Stator thickness:

14mm

Current density:

5.50A/mm2

System Inputs

System voltage:

200.00V

Nominal voltage:

550.00V

Transmission cable losses:

3.00%

Rectifier losses:

5.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
