Clone of 1.2m ferrite 8 poles TSR 5 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by Adriprevost on Fri, 18/11/2022 - 17:07

Duration:

00:01:12

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	310.51 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	1128.21 RPM	n_nom
Nominal tip speed ratio	7.08514	tsr_nom

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.697983	ai
Inner-to-outer magnet radius	0.569739	kd

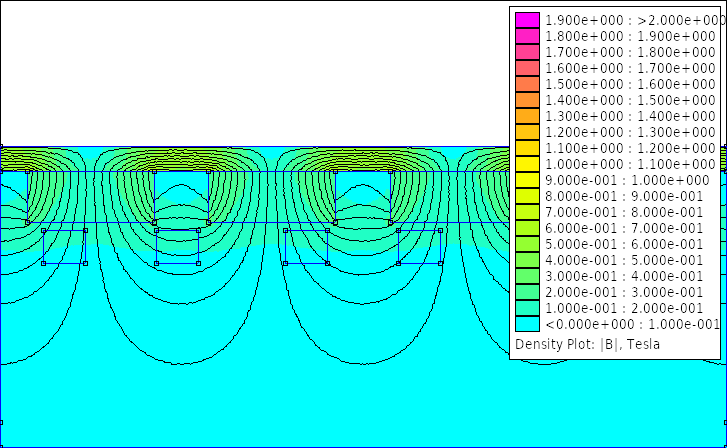

Flux density in airgap	0.0967586 T	Bmax
Flux density on magnet surface	0.138611 T	Bmg
First harmonic of flux density in airgap	0.0995627 T	Bp
Flux per pole (Calculated)	0.000362381 Wb	Flux_pole
Magnets on a rotor disk	8	magnet_num
Distance between magnets	2 mm	dist_magnet_Rin
Magnet mass	4000 g	MagnetMass
Magnet density	5 g/cm3	mag_density
Volume of a single magnet	50000 mm3	Vmag
Volume of all magnets	800000 mm3	VolumeMagnet
Remanent magnetic flux density	0.39 T	Br
Magnetic coercivity	227950 A/m	Hc
Maximum Energy Product	30 KJ/m³	BHmax
Outer diameter	237.734 mm	Dout
Average radius	91.2085 mm	Ravg
Inner radius	66.2085 mm	Rin
Outer radius	118.867 mm	Rout
Effective outer radius	116.208 mm	Rout_eff
Mass of rotor disks	3.4934 kgr	BackIronMass
Volume of rotor disks	443.888 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.525933 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	13 mm	tw
Number of phases	3	nphase
Number of coils per phase	2	q
Total number of coils in stator	6	coil_num
Number of turns per coil	167	Nc
Copper wire diameter	0.95 mm	dc
Number of wires at hand	1	No_wires_at_hand
Winding fill factor	0.55	kf
Copper wire cross-sectional area	0.71 mm2	sc
Copper wire cross-sectional area (Calculated)	0.656855 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	0.71 mm²	sc_multi_wires
Copper wire diameter (Calculated)	0.914745 mm	dc_theor
Coil leg width	16.5832 mm	wc
Average length of coil turn	249.427 mm	lavg
Stator nominal temperature	76.257 C°	tc_real
Stator surface area	496.355 cm²	stator_surface_area
Heat coefficient	0.272792	cq_real
Current density	6.01346 A	Jmax_real
Resistivity of copper at nominal temperature	2.11012E-8 Ohm.m	pt
Resistance of a single coil	1.23796 Ohm	Rc
Phase resistance	2.47592 Ohm	Rphase
Phase inductance	0.00538882 H	Ls
Nagaoka constant	0.201878	Kn
Winding coefficient	0.45998	kw
Volume of a single coil	53771.8 mm3	coil_volume
Weight of a single coil	267.562 g	coil_weight_constr
Coil hole at Ravg	28 mm	coil_hole_Ravg
Coil hole at Rin	6 mm	coil_hole_Rin_constr
Coil hole at Rout	50 mm	coil_hole_Rout_constr
Coil mass for construction	1.87294 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	5.132 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	18.5948 V	EMF_nom
Current at the nominal wind speed	4.26956 A	Iac_nom
Terminal voltage at the nominal wind speed	5.6452 V	V_term_line
Nominal frequency	75.2138 Hz	fnom
Generator power (Calculated)	72.3075 W	Pnom
Copper losses (Calculated)	135.402 W	Pcopper
Eddy current losses (Calculated)	0.361309 W	Peddy
Generator efficiency (Calculated)	0.308639	efficiency_real
AC Power at the rectifier (Calculated)	65.0768 W	Pnom_rect
DC Power at the batteries (Calculated)	58.5691 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Calculated)	26.2081 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	149.911 EUR	Totalcost
Total generator mass	10.0585 kgr	TotalMass
Total generator volume	2.04189 dm3	TotalVolume
Blade rotor mass	0.412897 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	62.8772 EUR	Magcost
Magnet shipping cost	48.3092 EUR	shippingcost
Copper mass	1.58638 kgr	mcu
Cost of copper	23.4149 EUR	coppercost
Resin mass	0.97872 kgr	resinmass
Cost of resin	13.519 EUR	resincost
Resin volume	719.647 cm3	ResinVolume
Total mass of one generator rotor	7.4934 kgr	TotalMassRotor
Cost of iron	4.29688 EUR	ironcost
Surface area of moulds	0.289158 m2	woodS
Total cost of moulds	45.8027 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-7679.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

0.60m

Aerodynamic coefficient:

0.35

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

6.50

Design TSR:

5.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Single Rotor

Magnetic material:

Ferrite C8

Number of generator poles:

Magnet length:

50mm

Magnet width:

50mm

Magnet thickness:

20mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

10mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Triangular

Winder bolt size:

6.00mm

Winding fill factor:

User defined

Winding fill factor:

0.55

Stator thickness:

13mm

Current density:

6.50A/mm2

System Inputs

System voltage:

12.00V

Nominal voltage:

12.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
