Clone of Clone of Clone of Clone of Clone of Clone of Clone of simulation 1 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by sbeaujeu on Fri, 03/12/2021 - 09:33

Duration:

00:00:42

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	250.796 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	436.345 RPM	n_nom
Nominal tip speed ratio	4.56707	tsr_nom

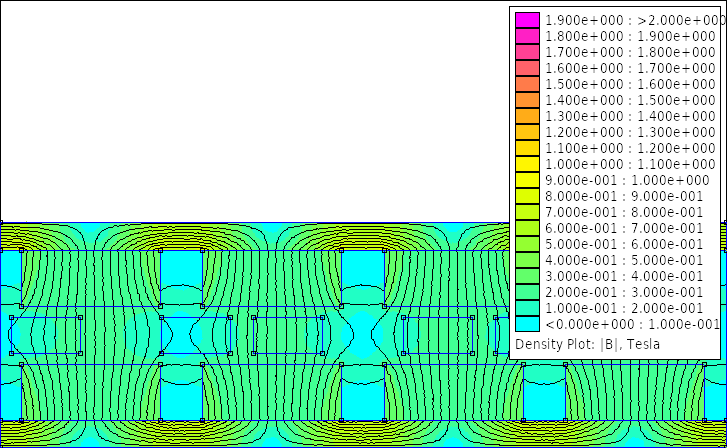

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.768167	ai
Inner-to-outer magnet radius	0.665132	kd
Flux density in airgap	0.215564 T	Bmax
Flux density on magnet surface	0.218795 T	Bmg
First harmonic of flux density in airgap	0.223591 T	Bp
Flux per pole (Calculated)	0.000562038 Wb	Flux_pole
Magnets on a rotor disk	12	magnet_num
Distance between magnets	2 mm	dist_magnet_Rin
Magnet mass	6000 g	MagnetMass
Magnet density	5 g/cm3	mag_density
Volume of a single magnet	50000 mm3	Vmag
Volume of all magnets	1200000 mm3	VolumeMagnet
Remanent magnetic flux density	0.39 T	Br
Magnetic coercivity	227950 A/m	Hc
Maximum Energy Product	30 KJ/m³	BHmax
Outer diameter	302.782 mm	Dout
Average radius	124.313 mm	Ravg
Inner radius	99.3127 mm	Rin
Outer radius	151.391 mm	Rout
Effective outer radius	149.313 mm	Rout_eff
Mass of rotor disks	11.3333 kgr	BackIronMass
Volume of rotor disks	1440.06 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.697759 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	13 mm	tw
Number of phases	3	nphase
Number of coils per phase	3	q
Total number of coils in stator	9	coil_num
Number of turns per coil	153	Nc
Copper wire diameter	1.18 mm	dc
Number of wires at hand	1	No_wires_at_hand
Winding fill factor	0.52	kf
Copper wire cross-sectional area	1.09 mm2	sc
Copper wire cross-sectional area (Calculated)	1.03096 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	1.09 mm²	sc_multi_wires
Copper wire diameter (Calculated)	1.146 mm	dc_theor
Coil leg width	24.6701 mm	wc
Average length of coil turn	231.973 mm	lavg
Stator nominal temperature	62.1942 C°	tc_real
Stator surface area	1030.11 cm²	stator_surface_area
Heat coefficient	0.213473	cq_real
Current density	5.67501 A	Jmax_real
Resistivity of copper at nominal temperature	1.96107E-8 Ohm.m	pt
Resistance of a single coil	0.638551 Ohm	Rc
Phase resistance	1.91565 Ohm	Rphase
Phase inductance	0.00541948 H	Ls
Nagaoka constant	0.186432	Kn
Winding coefficient	0.713226	kw
Volume of a single coil	74396.5 mm3	coil_volume
Weight of a single coil	350.375 g	coil_weight_constr
Coil hole at Ravg	29 mm	coil_hole_Ravg
Coil hole at Rin	8 mm	coil_hole_Rin_constr
Coil hole at Rout	50 mm	coil_hole_Rout_constr
Coil mass for construction	3.50375 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	20.528 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	35.6516 V	EMF_nom
Current at the nominal wind speed	6.18577 A	Iac_nom
Terminal voltage at the nominal wind speed	22.5808 V	V_term_line
Nominal frequency	43.6345 Hz	fnom
Generator power (Calculated)	419.039 W	Pnom
Copper losses (Calculated)	219.9 W	Pcopper
Eddy current losses (Calculated)	2.234 W	Peddy
Generator efficiency (Calculated)	0.633751	efficiency_real
AC Power at the rectifier (Calculated)	377.135 W	Pnom_rect
DC Power at the batteries (Calculated)	339.421 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Calculated)	20.0313 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	226.795 EUR	Totalcost
Total generator mass	21.5349 kgr	TotalMass
Total generator volume	5.82505 dm3	TotalVolume
Blade rotor mass	1.91156 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	94.3158 EUR	Magcost
Magnet shipping cost	72.4638 EUR	shippingcost
Copper mass	3.11269 kgr	mcu
Cost of copper	45.9433 EUR	coppercost
Resin mass	1.08896 kgr	resinmass
Cost of resin	15.0417 EUR	resincost
Resin volume	800.705 cm3	ResinVolume
Total mass of one generator rotor	8.66664 kgr	TotalMassRotor
Cost of iron	13.9399 EUR	ironcost
Surface area of moulds	0.363346 m2	woodS
Total cost of moulds	57.5541 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-7307.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

1.00m

Aerodynamic coefficient:

0.35

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

8.75

Design TSR:

7.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

Ferrite C8

Number of generator poles:

Magnet length:

50mm

Magnet width:

50mm

Magnet thickness:

20mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

10mm

Mechanical clearance:

3.95mm

Generator Stator Inputs

Select coil type:

Triangular

Winder bolt size:

8.00mm

Winding fill factor:

User defined

Winding fill factor:

0.52

Stator thickness:

User defined

Stator thickness:

13mm

Current density:

6.00A/mm2

System Inputs

System voltage:

48.00V

Nominal voltage:

48.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
