Magnet calcs | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by morganmccaughey on Mon, 08/03/2021 - 17:00

Duration:

00:01:27

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	208.997 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	919.658 RPM	n_nom
Nominal tip speed ratio	11.5509	tsr_nom

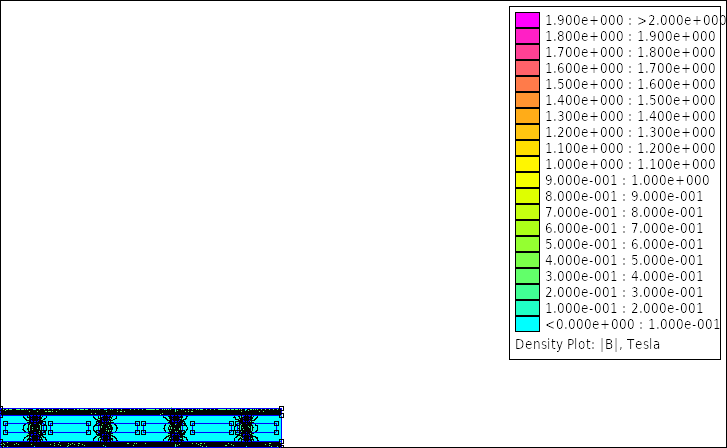

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.0927455	ai
Inner-to-outer magnet radius	0.802998	kd
Flux density in airgap	0.291332 T	Bmax
Flux density on magnet surface	0.641779 T	Bmg
First harmonic of flux density in airgap	0.102653 T	Bp
Flux per pole (Calculated)	0.000192644 Wb	Flux_pole
Magnets on a rotor disk	8	magnet_num
Distance between magnets	86.0409 mm	dist_magnet_Rin
Magnet mass	360 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	3000 mm3	Vmag
Volume of all magnets	48000 mm3	VolumeMagnet
Remanent magnetic flux density	1.265 T	Br
Magnetic coercivity	982324 A/m	Hc
Maximum Energy Product	326 KJ/m³	BHmax
Outer diameter	304.73 mm	Dout
Average radius	137.283 mm	Ravg
Inner radius	122.283 mm	Rin
Outer radius	152.365 mm	Rout
Effective outer radius	152.283 mm	Rout_eff
Mass of rotor disks	11.4796 kgr	BackIronMass
Volume of rotor disks	1458.65 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.430278 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	14 mm	tw
Number of phases	3	nphase
Number of coils per phase	2	q
Total number of coils in stator	6	coil_num
Number of turns per coil	113	Nc
Copper wire diameter	1.6 mm	dc
Number of wires at hand	2	No_wires_at_hand
Winding fill factor	0.55	kf
Copper wire cross-sectional area	4.02 mm2	sc
Copper wire cross-sectional area (Calculated)	3.55478 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	2.01 mm²	sc_multi_wires
Copper wire diameter (Calculated)	2.128 mm	dc_theor
Coil leg width	58.9948 mm	wc
Average length of coil turn	265.244 mm	lavg
Stator nominal temperature	82.0572 C°	tc_real
Stator surface area	1877.76 cm²	stator_surface_area
Heat coefficient	0.295511	cq_real
Current density	6.01307 A	Jmax_real
Resistivity of copper at nominal temperature	2.12285E-8 Ohm.m	pt
Resistance of a single coil	0.158277 Ohm	Rc
Phase resistance	0.316554 Ohm	Rphase
Phase inductance	0.00166655 H	Ls
Nagaoka constant	0.129858	Kn
Winding coefficient	0.95	kw
Volume of a single coil	219072 mm3	coil_volume
Weight of a single coil	1096.24 g	coil_weight_constr
Coil hole at Ravg	10 mm	coil_hole_Ravg
Coil hole at Rin	10 mm	coil_hole_Rin_constr
Coil hole at Rout	10 mm	coil_hole_Rout_constr
Coil mass for construction	7.67369 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	2.566 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	11.2607 V	EMF_nom
Current at the nominal wind speed	24.1725 A	Iac_nom
Terminal voltage at the nominal wind speed	2.8226 V	V_term_line
Nominal frequency	61.3106 Hz	fnom
Generator power (Calculated)	204.688 W	Pnom
Copper losses (Calculated)	554.898 W	Pcopper
Eddy current losses (Calculated)	3.0164 W	Peddy
Generator efficiency (Calculated)	0.256734	efficiency_real
AC Power at the rectifier (Calculated)	184.219 W	Pnom_rect
DC Power at the batteries (Calculated)	165.798 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Calculated)	34.6737 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	242.331 EUR	Totalcost
Total generator mass	20.8521 kgr	TotalMass
Total generator volume	4.37595 dm3	TotalVolume
Blade rotor mass	3.30317 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	39.6746 EUR	Magcost
Magnet shipping cost	2.89855 EUR	shippingcost
Copper mass	6.46306 kgr	mcu
Cost of copper	95.3948 EUR	coppercost
Resin mass	2.54947 kgr	resinmass
Cost of resin	35.2156 EUR	resincost
Resin volume	1874.61 cm3	ResinVolume
Total mass of one generator rotor	5.91979 kgr	TotalMassRotor
Cost of iron	14.1199 EUR	ironcost
Surface area of moulds	0.365699 m2	woodS
Total cost of moulds	57.9267 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-6925.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

1.20m

Aerodynamic coefficient:

0.30

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

8.75

Design TSR:

7.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N40

Number of generator poles:

Magnet length:

30mm

Magnet width:

10mm

Magnet thickness:

10mm

Rotor disk thickness:

Calculated

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Rectangular

Winding fill factor:

User defined

Winding fill factor:

0.55

Stator thickness:

User defined

Stator thickness:

14mm

Current density:

6.80A/mm2

System Inputs

System voltage:

6.00V

Nominal voltage:

6.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
