Practise 4 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by morganmccaughey on Tue, 02/03/2021 - 13:58

Duration:

00:00:36

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	286.624 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	1709.05 RPM	n_nom
Nominal tip speed ratio	10.7328	tsr_nom

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.150508	ai
Inner-to-outer magnet radius	0.888388	kd

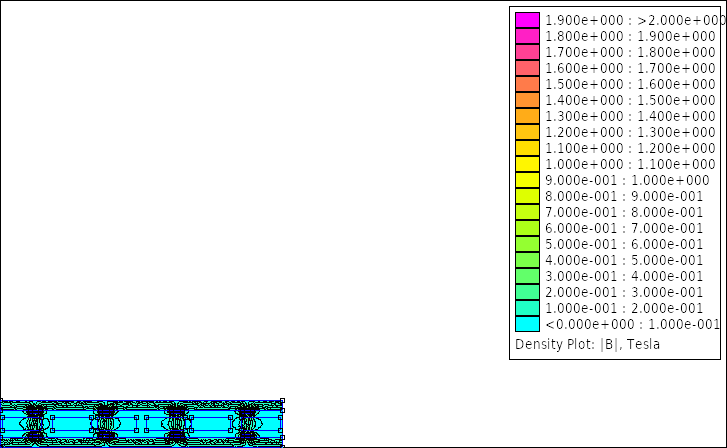

Flux density in airgap	0.174658 T	Bmax
Flux density on magnet surface	0.439785 T	Bmg
First harmonic of flux density in airgap	0.0779407 T	Bp
Flux per pole (Calculated)	4.40944E-5 Wb	Flux_pole
Magnets on a rotor disk	8	magnet_num
Distance between magnets	52.5148 mm	dist_magnet_Rin
Magnet mass	36 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	300 mm3	Vmag
Volume of all magnets	4800 mm3	VolumeMagnet
Remanent magnetic flux density	1.265 T	Br
Magnetic coercivity	982324 A/m	Hc
Maximum Energy Product	326 KJ/m³	BHmax
Outer diameter	179.471 mm	Dout
Average radius	84.5963 mm	Ravg
Inner radius	79.5963 mm	Rin
Outer radius	89.7357 mm	Rout
Effective outer radius	89.5963 mm	Rout_eff
Mass of rotor disks	3.98185 kgr	BackIronMass
Volume of rotor disks	505.953 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.218068 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	13 mm	tw
Number of phases	3	nphase
Number of coils per phase	2	q
Total number of coils in stator	6	coil_num
Number of turns per coil	361	Nc
Copper wire diameter	1.12 mm	dc
Number of wires at hand	1	No_wires_at_hand
Winding fill factor	0.75	kf
Copper wire cross-sectional area	0.99 mm2	sc
Copper wire cross-sectional area (Calculated)	0.889417 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	0.99 mm²	sc_multi_wires
Copper wire diameter (Calculated)	1.06443 mm	dc_theor
Coil leg width	36.6554 mm	wc
Average length of coil turn	155.098 mm	lavg
Stator nominal temperature	58.0135 C°	tc_real
Stator surface area	682.221 cm²	stator_surface_area
Heat coefficient	0.194441	cq_real
Current density	4.492 A	Jmax_real
Resistivity of copper at nominal temperature	1.97666E-8 Ohm.m	pt
Resistance of a single coil	1.11792 Ohm	Rc
Phase resistance	2.23584 Ohm	Rphase
Phase inductance	0.0086859 H	Ls
Nagaoka constant	0.180095	Kn
Winding coefficient	0.95	kw
Volume of a single coil	73907.3 mm3	coil_volume
Weight of a single coil	498.294 g	coil_weight_constr
Coil hole at Ravg	10 mm	coil_hole_Ravg
Coil hole at Rin	10 mm	coil_hole_Rin_constr
Coil hole at Rout	10 mm	coil_hole_Rout_constr
Coil mass for construction	3.48805 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	2.566 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	15.3022 V	EMF_nom
Current at the nominal wind speed	4.44708 A	Iac_nom
Terminal voltage at the nominal wind speed	2.8226 V	V_term_line
Nominal frequency	113.937 Hz	fnom
Generator power (Calculated)	37.657 W	Pnom
Copper losses (Calculated)	132.651 W	Pcopper
Eddy current losses (Calculated)	0.429946 W	Peddy
Generator efficiency (Calculated)	0.189651	efficiency_real
AC Power at the rectifier (Calculated)	33.8913 W	Pnom_rect
DC Power at the batteries (Calculated)	30.5022 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Calculated)	27.8213 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	109.124 EUR	Totalcost
Total generator mass	7.9148 kgr	TotalMass
Total generator volume	1.13839 dm3	TotalVolume
Blade rotor mass	0.412897 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	11.1675 EUR	Magcost
Magnet shipping cost	0.289855 EUR	shippingcost
Copper mass	2.97329 kgr	mcu
Cost of copper	43.8857 EUR	coppercost
Resin mass	0.923656 kgr	resinmass
Cost of resin	12.7584 EUR	resincost
Resin volume	679.159 cm3	ResinVolume
Total mass of one generator rotor	2.00893 kgr	TotalMassRotor
Cost of iron	4.89768 EUR	ironcost
Surface area of moulds	0.229893 m2	woodS
Total cost of moulds	36.415 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-6920.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

0.60m

Aerodynamic coefficient:

0.30

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

6.00

Design TSR:

6.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N40

Number of generator poles:

Magnet length:

10mm

Magnet width:

10mm

Magnet thickness:

3mm

Rotor disk thickness:

Calculated

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Rectangular

Winding fill factor:

User defined

Winding fill factor:

0.75

Stator thickness:

Calculated

Current density:

5.00A/mm2

System Inputs

System voltage:

6.00V

Nominal voltage:

6.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
