2F 24V v0.3 (only for controller reference, unfinished design) | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by Jonathan_purese... on Tue, 16/02/2021 - 12:18

Duration:

00:04:18

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	206.369 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	504.459 RPM	n_nom
Nominal tip speed ratio	4.4	tsr_nom
RPM at the cut-in wind speed (Flux Linkage)	200 RPM	cutin_RPM
Cut-in Voltage (Flux Linkage)	24 V	cutin_Voltage
Wind speed at cut-in RPM (Flux Linkage)	2.90741 m/s	cutin_Vw
Mechanical power (Torque)	1389.29 W	Pmech_Torque_x

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	6 mm	hr
Magnet width-to-pole pitch ratio	0.792979	ai
Inner-to-outer magnet radius	0.667199	kd

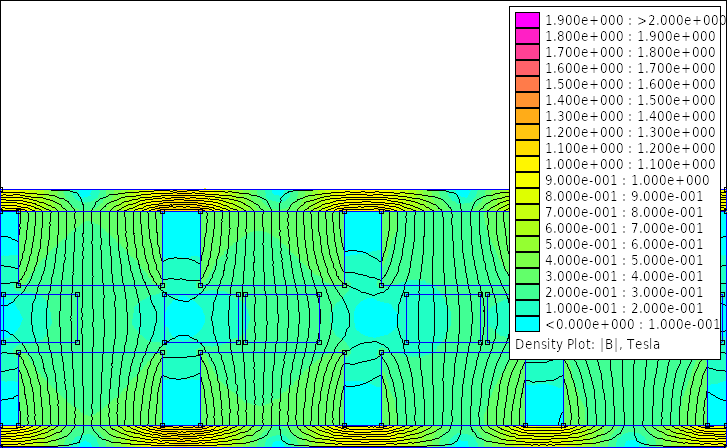

Flux density in airgap	0.216068 T	Bmax
Flux density on magnet surface	0.222771 T	Bmg
First harmonic of flux density in airgap	0.221582 T	Bp
Flux per pole (Calculated)	0.000441498 Wb	Flux_pole
Magnets on a rotor disk	16	magnet_num
Distance between magnets	0.3641 mm	dist_magnet_Rin
Magnet mass	6240 g	MagnetMass
Magnet density	5 g/cm3	mag_density
Volume of a single magnet	39000 mm3	Vmag
Volume of all magnets	1248000 mm3	VolumeMagnet
Remanent magnetic flux density	0.39 T	Br
Magnetic coercivity	227950 A/m	Hc
Maximum Energy Product	30 KJ/m³	BHmax
Outer diameter	303 mm	Dout
Average radius	125.24 mm	Ravg
Inner radius	100.24 mm	Rin
Outer radius	151.5 mm	Rout
Effective outer radius	150.24 mm	Rout_eff
Mass of rotor disks	6.80975 kgr	BackIronMass
Volume of rotor disks	865.279 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	1.00678 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	13 mm	tw
Number of phases	3	nphase
Number of coils per phase	4	q
Total number of coils in stator	12	coil_num
Number of turns per coil	63	Nc
Copper wire diameter	1.6 mm	dc
Number of wires at hand	1	No_wires_at_hand
Winding fill factor	0.55	kf
Copper wire cross-sectional area	2.01062 mm2	sc
Copper wire diameter (Calculated)	1.6 mm	dc_theor
Coil leg width	20 mm	wc
Average length of coil turn	199.66 mm	lavg
Stator nominal temperature	60 C°	tc_real
Stator surface area	958.366 cm²	stator_surface_area
Heat coefficient	0.436094	cq_real
Current density	8.95247 A	Jmax_real
Resistivity of copper at nominal temperature	1.93977E-8 Ohm.m	pt
Resistance of a single coil	0.121353 Ohm	Rc
Phase resistance	0.485412 Ohm	Rphase
Phase inductance	0.00103721 H	Ls
Nagaoka constant	0.213054	Kn
Volume of a single coil	51911.5 mm3	coil_volume
Weight of a single coil	233.276 g	coil_weight_constr
Coil hole at Rin	8 mm	coil_hole_Rin_constr
Coil hole at Rout	39 mm	coil_hole_Rout_constr
Coil mass for construction	3.03259 kgr	mcu_constr
RMS flux linkage of phase A	0.0152699 Wb	FluxRmsA
RMS flux linkage of phase B	0.014811 Wb	FluxRmsB
RMS flux linkage of phase C	0.01503 Wb	FluxRmsC
EMF at the cut-in wind speed (Calculated)	10.264 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	25.0898 V	EMF_nom
RMS of EMF of phase A (Flux Linkage)	24.9983 V	V_rmsA
RMS of EMF of phase B (Flux Linkage)	25.3213 V	V_rmsB
RMS of EMF of phase C (Flux Linkage)	25.2032 V	V_rmsC
Current at the nominal wind speed	18 A	Iac_nom
Nominal frequency	67.2611 Hz	fnom
Generator power (Torque)	895.881 W	PelN_Torque_x
Electromagnetic power (Torque)	1370.45 W	PHMN_Torque_x
Copper losses (Torque)	471.821 W	PcopperN_Torque_x
Eddy current losses (Torque)	2.74864 W	PeddyN_Torque_x
Generator efficiency (Torque)	0.64485	efftotalN_Torque_x
AC Power at the rectifier (Torque)	824.211 W	PelN_Torque_x_rect
DC Power at the batteries (Torque)	758.274 W	PelN_Torque_x_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Torque)	18.8364 W	ProtN_Torque_x

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	219.886 EUR	Totalcost
Total generator mass	16.6961 kgr	TotalMass
Total generator volume	5.04746 dm3	TotalVolume
Blade rotor mass	1.91156 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	100.978 EUR	Magcost
Magnet shipping cost	75.3623 EUR	shippingcost
Copper mass	2.71318 kgr	mcu
Cost of copper	40.0466 EUR	coppercost
Resin mass	0.933176 kgr	resinmass
Cost of resin	12.8899 EUR	resincost
Resin volume	686.159 cm3	ResinVolume
Total mass of one generator rotor	6.52487 kgr	TotalMassRotor
Cost of iron	8.37599 EUR	ironcost
Surface area of moulds	0.363609 m2	woodS
Total cost of moulds	57.5957 EUR	woodcost

Revolutions per minute (RPM)
0
504.458599

I_RMS (A)
0
18

Output files

Octave/Matlab variable file:

simulation-6890.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

1.00m

Cut-in wind speed:

3.00m/s

Nominal wind speed:

12.00m/s

Cut-in TSR:

7.20

Nominal TSR:

4.40

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Outer diameter:

303.00mm

Magnetic material:

Ferrite C8

Number of generator poles:

Magnet length:

50mm

Magnet width:

39mm

Magnet thickness:

20mm

Rotor disk thickness:

6mm

Mechanical clearance:

2.50mm

Generator Stator Inputs

Select coil type:

Triangular

Winder bolt size:

8.00mm

Winding fill factor:

0.55

Current at nominal wind speed:

18.00A

Stator thickness:

13mm

Number of turns per coil:

Copper wire diameter:

1.60mm

Number of wires at hand:

Coil leg width:

20mm

Stator nominal temperature:

60.00C°

System Inputs

System voltage:

24.00V

Transmission cable losses:

8.00%

Rectifier losses:

8.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Simulation Radius:

Average radius

Simulation step:

Current step:

RPM Step:

Mesh size:

Automesh

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
