Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	258.758 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	499.507 RPM	n_nom
Nominal tip speed ratio	5.70346	tsr_nom

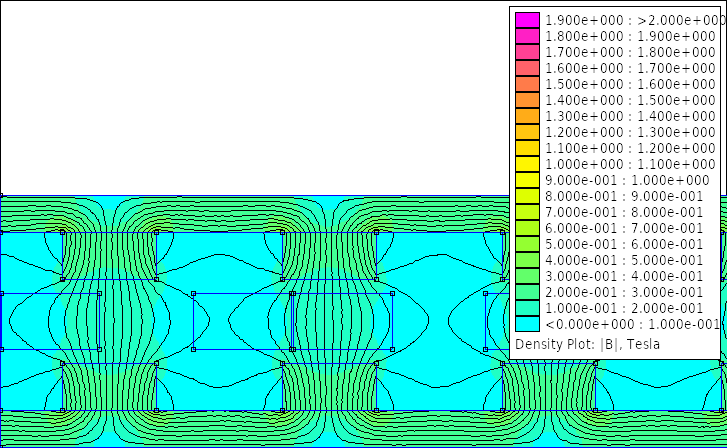

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	8 mm	hr
Magnet width-to-pole pitch ratio	0.426755	ai
Inner-to-outer magnet radius	0.845371	kd
Flux density in airgap	0.141094 T	Bmax
Flux density on magnet surface	0.17886 T	Bmg
First harmonic of flux density in airgap	0.115235 T	Bp
Flux per pole (Calculated)	0.000143229 Wb	Flux_pole
Magnets on a rotor disk	32	magnet_num
Distance between magnets	22.9383 mm	dist_magnet_Rin
Magnet mass	2560 g	MagnetMass
Magnet density	5 g/cm3	mag_density
Volume of a single magnet	8000 mm3	Vmag
Volume of all magnets	512000 mm3	VolumeMagnet
Remanent magnetic flux density	0.39 T	Br
Magnetic coercivity	227950 A/m	Hc
Maximum Energy Product	30 KJ/m³	BHmax
Outer diameter	517.753 mm	Dout
Average radius	238.683 mm	Ravg
Inner radius	218.683 mm	Rin
Outer radius	258.876 mm	Rout
Effective outer radius	258.683 mm	Rout_eff
Mass of rotor disks	26.5112 kgr	BackIronMass
Volume of rotor disks	3368.64 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.289413 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	12 mm	tw
Number of phases	3	nphase
Number of coils per phase	8	q
Total number of coils in stator	24	coil_num
Number of turns per coil	62	Nc
Copper wire diameter	1.6 mm	dc
Number of wires at hand	1	No_wires_at_hand
Winding fill factor	0.5	kf
Copper wire cross-sectional area	2.01 mm2	sc
Copper wire cross-sectional area (Calculated)	1.81511 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	2.01 mm²	sc_multi_wires
Copper wire diameter (Calculated)	1.52061 mm	dc_theor
Coil leg width	20.9777 mm	wc
Average length of coil turn	170.624 mm	lavg
Stator nominal temperature	41.6461 C°	tc_real
Stator surface area	1718.06 cm²	stator_surface_area
Heat coefficient	0.11134	cq_real
Current density	4.51521 A	Jmax_real
Resistivity of copper at nominal temperature	1.83864E-8 Ohm.m	pt
Resistance of a single coil	0.0967679 Ohm	Rc
Phase resistance	0.774143 Ohm	Rphase
Phase inductance	0.00156988 H	Ls
Nagaoka constant	0.210424	Kn
Winding coefficient	0.95	kw
Volume of a single coil	42951.5 mm3	coil_volume
Weight of a single coil	196.224 g	coil_weight_constr
Coil hole at Ravg	20 mm	coil_hole_Ravg
Coil hole at Rin	14.7929 mm	coil_hole_Rin_constr
Coil hole at Rout	25.2576 mm	coil_hole_Rout_constr
Coil mass for construction	4.9056 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	20.528 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	39.9202 V	EMF_nom
Current at the nominal wind speed	9.07557 A	Iac_nom
Terminal voltage at the nominal wind speed	30.5782 V	V_term_line
Nominal frequency	133.202 Hz	fnom
Generator power (Calculated)	832.544 W	Pnom
Copper losses (Calculated)	191.289 W	Pcopper
Eddy current losses (Calculated)	15.8047 W	Peddy
Generator efficiency (Calculated)	0.773966	efficiency_real
AC Power at the rectifier (Calculated)	749.289 W	Pnom_rect
DC Power at the batteries (Calculated)	674.36 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Calculated)	36.0474 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	313.729 EUR	Totalcost
Total generator mass	36.9309 kgr	TotalMass
Total generator volume	11.3692 dm3	TotalVolume
Blade rotor mass	3.30317 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	62.3099 EUR	Magcost
Magnet shipping cost	30.9179 EUR	shippingcost
Copper mass	4.56221 kgr	mcu
Cost of copper	67.3382 EUR	coppercost
Resin mass	3.29745 kgr	resinmass
Cost of resin	45.5474 EUR	resincost
Resin volume	2424.6 cm3	ResinVolume
Total mass of one generator rotor	14.5356 kgr	TotalMassRotor
Cost of iron	32.6088 EUR	ironcost
Surface area of moulds	0.668719 m2	woodS
Total cost of moulds	105.925 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-6821.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

1.20m

Aerodynamic coefficient:

0.30

Cut-in wind speed:

5.00m/s

Nominal wind speed:

11.00m/s

Cut-in TSR:

6.50

Design TSR:

4.10

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

Ferrite C8

Number of generator poles:

Magnet length:

40mm

Magnet width:

20mm

Magnet thickness:

10mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

8mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Keyhole

Winding fill factor:

User defined

Winding fill factor:

0.50

Stator thickness:

User defined

Stator thickness:

12mm

Current density:

5.00A/mm2

System Inputs

System voltage:

48.00V

Nominal voltage:

65.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
