Clone of na8 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by AHMEDNA8 on Wed, 11/11/2020 - 11:05

Duration:

00:00:44

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	113.998 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	325.409 RPM	n_nom
Nominal tip speed ratio	8.32565	tsr_nom

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.312914	ai
Inner-to-outer magnet radius	0.776812	kd

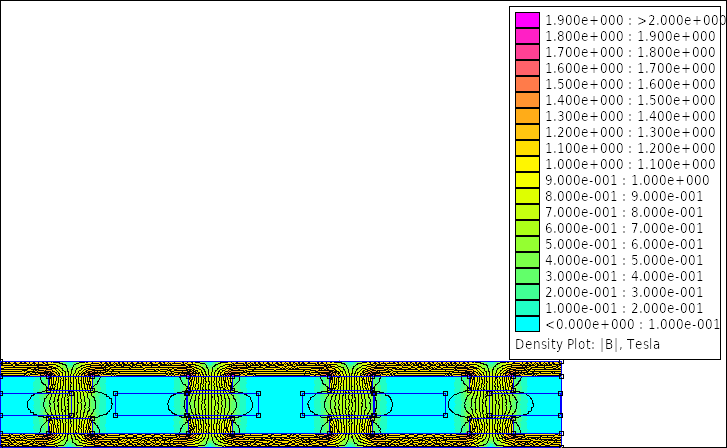

Flux density in airgap	0.658632 T	Bmax
Flux density on magnet surface	0.735605 T	Bmg
First harmonic of flux density in airgap	0.389327 T	Bp
Flux per pole (Calculated)	0.00102 Wb	Flux_pole
Magnets on a rotor disk	12	magnet_num
Distance between magnets	53.8304 mm	dist_magnet_Rin
Magnet mass	2484 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	13800 mm3	Vmag
Volume of all magnets	331200 mm3	VolumeMagnet
Remanent magnetic flux density	1.45 T	Br
Magnetic coercivity	1120020 A/m	Hc
Maximum Energy Product	422 KJ/m³	BHmax
Outer diameter	413.299 mm	Dout
Average radius	183.104 mm	Ravg
Inner radius	160.104 mm	Rin
Outer radius	206.649 mm	Rout
Effective outer radius	206.104 mm	Rout_eff
Mass of rotor disks	21.1165 kgr	BackIronMass
Volume of rotor disks	2683.17 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	1.2681 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	15 mm	tw
Number of phases	3	nphase
Number of coils per phase	3	q
Total number of coils in stator	9	coil_num
Number of turns per coil	35	Nc
Copper wire diameter	1.7 mm	dc
Number of wires at hand	5	No_wires_at_hand
Winding fill factor	0.55	kf
Copper wire cross-sectional area	11.35 mm2	sc
Copper wire cross-sectional area (Calculated)	10.2826 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	2.27 mm²	sc_multi_wires
Copper wire diameter (Calculated)	3.61923 mm	dc_theor
Coil leg width	48.633 mm	wc
Average length of coil turn	280.597 mm	lavg
Stator nominal temperature	50.5408 C°	tc_real
Stator surface area	2456.33 cm²	stator_surface_area
Heat coefficient	0.158414	cq_real
Current density	4.52976 A	Jmax_real
Resistivity of copper at nominal temperature	1.89034E-8 Ohm.m	pt
Resistance of a single coil	0.0163567 Ohm	Rc
Phase resistance	0.0490701 Ohm	Rphase
Phase inductance	0.000285718 H	Ls
Nagaoka constant	0.148117	Kn
Winding coefficient	0.95	kw
Volume of a single coil	204695 mm3	coil_volume
Weight of a single coil	1053.46 g	coil_weight_constr
Coil hole at Ravg	30 mm	coil_hole_Ravg
Coil hole at Rin	14.0033 mm	coil_hole_Rin_constr
Coil hole at Rout	46.0256 mm	coil_hole_Rout_constr
Coil mass for construction	10.5346 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	5.132 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	14.7023 V	EMF_nom
Current at the nominal wind speed	51.4128 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	32.5409 Hz	fnom
Generator power (Calculated)	1741.42 W	Pnom
Copper losses (Calculated)	389.118 W	Pcopper
Eddy current losses (Calculated)	81.8163 W	Peddy
Generator efficiency (Calculated)	0.775207	efficiency_real
AC Power at the rectifier (Calculated)	1567.27 W	Pnom_rect
DC Power at the batteries (Calculated)	1410.55 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	5	No_bolts_hub
Mass of bearing hub	8344.46 g	BearingHubMass
Rotational losses (Calculated)	34.0373 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	579.295 EUR	Totalcost
Total generator mass	36.5529 kgr	TotalMass
Total generator volume	7.91534 dm3	TotalVolume
Blade rotor mass	20.3543 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	285.324 EUR	Magcost
Magnet shipping cost	20 EUR	shippingcost
Copper mass	8.96866 kgr	mcu
Cost of copper	132.377 EUR	coppercost
Resin mass	3.9837 kgr	resinmass
Cost of resin	55.0264 EUR	resincost
Resin volume	2929.19 cm3	ResinVolume
Total mass of one generator rotor	11.8003 kgr	TotalMassRotor
Cost of iron	25.9733 EUR	ironcost
Surface area of moulds	0.508795 m2	woodS
Total cost of moulds	80.5931 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-6554.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

2.20m

Aerodynamic coefficient:

0.34

Cut-in wind speed:

3.00m/s

Nominal wind speed:

9.00m/s

Cut-in TSR:

8.75

Design TSR:

7.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N52

Number of generator poles:

Magnet length:

46mm

Magnet width:

30mm

Magnet thickness:

10mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

10mm

Mechanical clearance:

2.00mm

Generator Stator Inputs

Select coil type:

Keyhole

Winding fill factor:

User defined

Winding fill factor:

0.55

Stator thickness:

Calculated

Current density:

5.00A/mm2

System Inputs

System voltage:

12.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
