na8 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by AHMEDNA8 on Wed, 11/11/2020 - 11:02

Duration:

00:00:40

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	113.998 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	342.894 RPM	n_nom
Nominal tip speed ratio	8.77301	tsr_nom

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.354558	ai
Inner-to-outer magnet radius	0.750809	kd

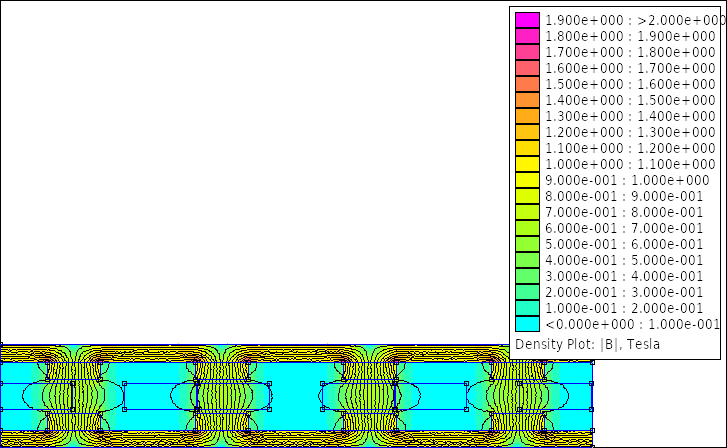

Flux density in airgap	0.612919 T	Bmax
Flux density on magnet surface	0.684442 T	Bmg
First harmonic of flux density in airgap	0.401874 T	Bp
Flux per pole (Calculated)	0.000950284 Wb	Flux_pole
Magnets on a rotor disk	12	magnet_num
Distance between magnets	42.5696 mm	dist_magnet_Rin
Magnet mass	2484 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	13800 mm3	Vmag
Volume of all magnets	331200 mm3	VolumeMagnet
Remanent magnetic flux density	1.35 T	Br
Magnetic coercivity	1041910 A/m	Hc
Maximum Energy Product	366 KJ/m³	BHmax
Outer diameter	370.412 mm	Dout
Average radius	161.598 mm	Ravg
Inner radius	138.598 mm	Rin
Outer radius	185.206 mm	Rout
Effective outer radius	184.598 mm	Rout_eff
Mass of rotor disks	16.9615 kgr	BackIronMass
Volume of rotor disks	2155.21 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	1.18363 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	15 mm	tw
Number of phases	3	nphase
Number of coils per phase	3	q
Total number of coils in stator	9	coil_num
Number of turns per coil	37	Nc
Copper wire diameter	1.7 mm	dc
Number of wires at hand	4	No_wires_at_hand
Winding fill factor	0.55	kf
Copper wire cross-sectional area	9.08 mm2	sc
Copper wire cross-sectional area (Calculated)	8.25658 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	2.27 mm²	sc_multi_wires
Copper wire diameter (Calculated)	3.24314 mm	dc_theor
Coil leg width	41.1296 mm	wc
Average length of coil turn	259.577 mm	lavg
Stator nominal temperature	69.761 C°	tc_real
Stator surface area	1921.74 cm²	stator_surface_area
Heat coefficient	0.246207	cq_real
Current density	5.45589 A	Jmax_real
Resistivity of copper at nominal temperature	2.02519E-8 Ohm.m	pt
Resistance of a single coil	0.0214214 Ohm	Rc
Phase resistance	0.0642643 Ohm	Rphase
Phase inductance	0.000302408 H	Ls
Nagaoka constant	0.163918	Kn
Winding coefficient	0.95	kw
Volume of a single coil	160145 mm3	coil_volume
Weight of a single coil	821.778 g	coil_weight_constr
Coil hole at Ravg	30 mm	coil_hole_Ravg
Coil hole at Rin	13.9942 mm	coil_hole_Rin_constr
Coil hole at Rout	45.9944 mm	coil_hole_Rout_constr
Coil mass for construction	8.21778 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	5.132 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	15.2583 V	EMF_nom
Current at the nominal wind speed	49.5395 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	34.2894 Hz	fnom
Generator power (Calculated)	1677.96 W	Pnom
Copper losses (Calculated)	473.145 W	Pcopper
Eddy current losses (Calculated)	61.5824 W	Peddy
Generator efficiency (Calculated)	0.747187	efficiency_real
AC Power at the rectifier (Calculated)	1510.17 W	Pnom_rect
DC Power at the batteries (Calculated)	1359.15 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	5	No_bolts_hub
Mass of bearing hub	8344.46 g	BearingHubMass
Rotational losses (Calculated)	33.0168 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	492.594 EUR	Totalcost
Total generator mass	29.8568 kgr	TotalMass
Total generator volume	6.35788 dm3	TotalVolume
Blade rotor mass	20.3543 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	250.082 EUR	Magcost
Magnet shipping cost	20 EUR	shippingcost
Copper mass	7.01672 kgr	mcu
Cost of copper	103.567 EUR	coppercost
Resin mass	3.39456 kgr	resinmass
Cost of resin	46.8888 EUR	resincost
Resin volume	2496 cm3	ResinVolume
Total mass of one generator rotor	9.72277 kgr	TotalMassRotor
Cost of iron	20.8627 EUR	ironcost
Surface area of moulds	0.449453 m2	woodS
Total cost of moulds	71.1933 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-6553.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

2.20m

Aerodynamic coefficient:

0.34

Cut-in wind speed:

3.00m/s

Nominal wind speed:

9.00m/s

Cut-in TSR:

8.75

Design TSR:

7.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N45

Number of generator poles:

Magnet length:

46mm

Magnet width:

30mm

Magnet thickness:

10mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

10mm

Mechanical clearance:

2.00mm

Generator Stator Inputs

Select coil type:

Keyhole

Winding fill factor:

User defined

Winding fill factor:

0.55

Stator thickness:

Calculated

Current density:

6.00A/mm2

System Inputs

System voltage:

12.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
