Clone of Clone of Clone of NA8 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by AHMEDNA8 on Fri, 23/10/2020 - 14:26

Duration:

00:03:27

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	208.997 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	286.162 RPM	n_nom
Nominal tip speed ratio	3.99355	tsr_nom
RPM at the cut-in wind speed (Flux Linkage)	207 RPM	cutin_RPM
Cut-in Voltage (Flux Linkage)	24 V	cutin_Voltage
Wind speed at cut-in RPM (Flux Linkage)	2.97134 m/s	cutin_Vw
Mechanical power (Torque)	620.628 W	Pmech_Torque_x

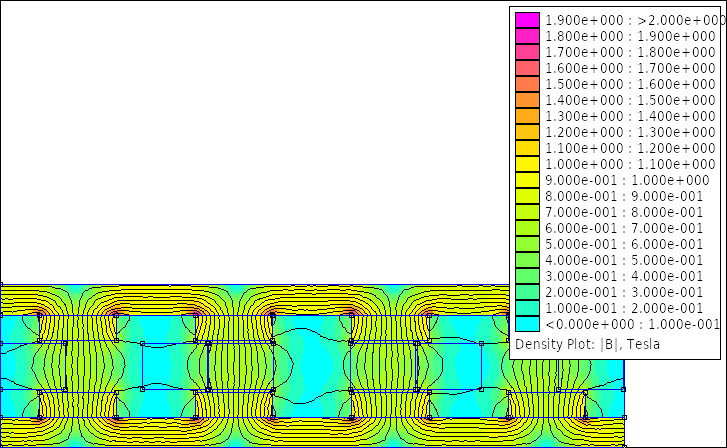

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.493933	ai
Inner-to-outer magnet radius	0.589039	kd
Flux density in airgap	0.614684 T	Bmax
Flux density on magnet surface	0.705385 T	Bmg
First harmonic of flux density in airgap	0.511417 T	Bp
Flux per pole (Calculated)	0.000890587 Wb	Flux_pole
Magnets on a rotor disk	12	magnet_num
Distance between magnets	12.5242 mm	dist_magnet_Rin
Magnet mass	1800 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	10000 mm3	Vmag
Volume of all magnets	240000 mm3	VolumeMagnet
Remanent magnetic flux density	1.45 T	Br
Magnetic coercivity	1120020 A/m	Hc
Maximum Energy Product	422 KJ/m³	BHmax
Outer diameter	244.613 mm	Dout
Average radius	96.666 mm	Ravg
Inner radius	71.666 mm	Rin
Outer radius	122.306 mm	Rout
Effective outer radius	121.666 mm	Rout_eff
Mass of rotor disks	7.39696 kgr	BackIronMass
Volume of rotor disks	939.893 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	1.00622 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	15 mm	tw
Number of phases	3	nphase
Number of coils per phase	3	q
Total number of coils in stator	9	coil_num
Number of turns per coil	44	Nc
Copper wire diameter	1.5 mm	dc
Number of wires at hand	2	No_wires_at_hand
Winding fill factor	0.5	kf
Copper wire cross-sectional area	3.54 mm2	sc
Copper wire cross-sectional area (Calculated)	3.3195 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	1.77 mm²	sc_multi_wires
Copper wire diameter (Calculated)	2.05637 mm	dc_theor
Coil leg width	20.9757 mm	wc
Average length of coil turn	204.952 mm	lavg
Stator nominal temperature	49.489 C°	tc_real
Stator surface area	773.821 cm²	stator_surface_area
Heat coefficient	0.153108	cq_real
Current density	4.68855 A	Jmax_real
Resistivity of copper at nominal temperature	1.87591E-8 Ohm.m	pt
Resistance of a single coil	0.0477873 Ohm	Rc
Phase resistance	0.143362 Ohm	Rphase
Phase inductance	0.000374967 H	Ls
Nagaoka constant	0.230544	Kn
Winding coefficient	0.95	kw
Volume of a single coil	64485.1 mm3	coil_volume
Weight of a single coil	298.367 g	coil_weight_constr
Coil hole at Ravg	25 mm	coil_hole_Ravg
Coil hole at Rin	7.57741 mm	coil_hole_Rin_constr
Coil hole at Rout	42.272 mm	coil_hole_Rout_constr
Coil mass for construction	2.98367 kgr	mcu_constr
RMS flux linkage of phase A	0.025569 Wb	FluxRmsA
RMS flux linkage of phase B	0.0250296 Wb	FluxRmsB
RMS flux linkage of phase C	0.0254849 Wb	FluxRmsC
EMF at the cut-in wind speed (Calculated)	10.264 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	14.1916 V	EMF_nom
RMS of EMF of phase A (Flux Linkage)	13.5565 V	V_rmsA
RMS of EMF of phase B (Flux Linkage)	13.6734 V	V_rmsB
RMS of EMF of phase C (Flux Linkage)	13.5728 V	V_rmsC
Current at the nominal wind speed	16.5975 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	28.6162 Hz	fnom
Generator power (Calculated)	562.177 W	Pnom
Generator power (Torque)	487.65 W	PelN_Torque_x
Electromagnetic power (Torque)	611.351 W	PHMN_Torque_x
Copper losses (Calculated)	118.478 W	Pcopper
Copper losses (Torque)	118.478 W	PcopperN_Torque_x
Eddy current losses (Torque)	5.22241 W	PeddyN_Torque_x
Generator efficiency (Torque)	0.785737	efftotalN_Torque_x
Generator efficiency (Calculated)	0.796443	efficiency_real
AC Power at the rectifier (Calculated)	505.959 W	Pnom_rect
AC Power at the rectifier (Torque)	438.885 W	PelN_Torque_x_rect
DC Power at the batteries (Calculated)	455.363 W	Pnom_dc
DC Power at the batteries (Torque)	394.997 W	PelN_Torque_x_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Calculated)	9.27667 W	Prot
Rotational losses (Torque)	9.27667 W	ProtN_Torque_x

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	328.195 EUR	Totalcost
Total generator mass	13.7261 kgr	TotalMass
Total generator volume	2.49072 dm3	TotalVolume
Blade rotor mass	3.30317 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	207.122 EUR	Magcost
Magnet shipping cost	14.4928 EUR	shippingcost
Copper mass	2.56855 kgr	mcu
Cost of copper	37.9118 EUR	coppercost
Resin mass	1.96062 kgr	resinmass
Cost of resin	27.0818 EUR	resincost
Resin volume	1441.63 cm3	ResinVolume
Total mass of one generator rotor	4.59848 kgr	TotalMassRotor
Cost of iron	9.09826 EUR	ironcost
Surface area of moulds	0.296603 m2	woodS
Total cost of moulds	46.9819 EUR	woodcost

Revolutions per minute (RPM)
0
286.161925

I_RMS (A)
0
16.597477

Output files

Octave/Matlab variable file:

simulation-6514.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

1.20m

Aerodynamic coefficient:

0.35

Cut-in wind speed:

3.00m/s

Nominal wind speed:

9.00m/s

Cut-in TSR:

8.75

Design TSR:

7.00

Air density:

1.225kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N52

Number of generator poles:

Magnet length:

50mm

Magnet width:

25mm

Magnet thickness:

8mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

10mm

Mechanical clearance:

1.00mm

Generator Stator Inputs

Select coil type:

Keyhole

Winding fill factor:

Calculated

Stator thickness:

Calculated

Current density:

5.00A/mm2

System Inputs

System voltage:

24.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

true

Simulation step:

Current step:

RPM Step:

Mesh size:

Automesh

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
