Clone of pma_ferite | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by AHMEDNA8 on Sat, 25/04/2020 - 07:51

Duration:

00:01:05

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	121.815 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	254.929 RPM	n_nom
Nominal tip speed ratio	5.33651	tsr_nom

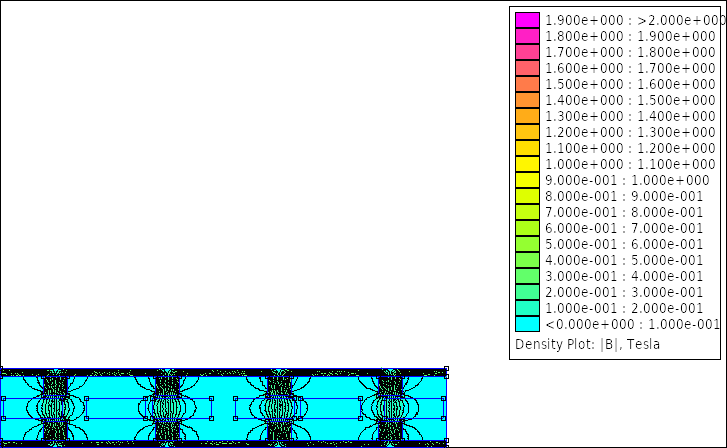

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	8 mm	hr
Magnet width-to-pole pitch ratio	0.214577	ai
Inner-to-outer magnet radius	0.916928	kd
Flux density in airgap	0.142745 T	Bmax
Flux density on magnet surface	0.194618 T	Bmg
First harmonic of flux density in airgap	0.0778967 T	Bp
Flux per pole (Calculated)	0.000218951 Wb	Flux_pole
Magnets on a rotor disk	28	magnet_num
Distance between magnets	86.4596 mm	dist_magnet_Rin
Magnet mass	6300 g	MagnetMass
Magnet density	5 g/cm3	mag_density
Volume of a single magnet	22500 mm3	Vmag
Volume of all magnets	1260000 mm3	VolumeMagnet
Remanent magnetic flux density	0.39 T	Br
Magnetic coercivity	227950 A/m	Hc
Maximum Energy Product	30 KJ/m³	BHmax
Outer diameter	1083.69 mm	Dout
Average radius	519.202 mm	Ravg
Inner radius	496.702 mm	Rin
Outer radius	541.846 mm	Rout
Effective outer radius	541.702 mm	Rout_eff
Mass of rotor disks	116.144 kgr	BackIronMass
Volume of rotor disks	14757.8 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.434978 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	21 mm	tw
Number of phases	3	nphase
Number of coils per phase	7	q
Total number of coils in stator	21	coil_num
Number of turns per coil	56	Nc
Copper wire diameter	1.7 mm	dc
Number of wires at hand	5	No_wires_at_hand
Winding fill factor	0.49	kf
Copper wire cross-sectional area	11.35 mm2	sc
Copper wire cross-sectional area (Calculated)	11.0134 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	2.27 mm²	sc_multi_wires
Copper wire diameter (Calculated)	3.74563 mm	dc_theor
Coil leg width	61.7687 mm	wc
Average length of coil turn	333.954 mm	lavg
Stator nominal temperature	47.6843 C°	tc_real
Stator surface area	8663.71 cm²	stator_surface_area
Heat coefficient	0.143853	cq_real
Current density	3.88136 A	Jmax_real
Resistivity of copper at nominal temperature	1.85595E-8 Ohm.m	pt
Resistance of a single coil	0.0305805 Ohm	Rc
Phase resistance	0.214063 Ohm	Rphase
Phase inductance	0.00190476 H	Ls
Nagaoka constant	0.163385	Kn
Winding coefficient	0.95	kw
Volume of a single coil	433186 mm3	coil_volume
Weight of a single coil	1965.39 g	coil_weight_constr
Coil hole at Ravg	25 mm	coil_hole_Ravg
Coil hole at Rin	25 mm	coil_hole_Rin_constr
Coil hole at Rout	25 mm	coil_hole_Rout_constr
Coil mass for construction	43.2385 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	10.264 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	21.5375 V	EMF_nom
Current at the nominal wind speed	44.0535 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	59.4834 Hz	fnom
Generator power (Calculated)	1492.14 W	Pnom
Copper losses (Calculated)	1246.3 W	Pcopper
Eddy current losses (Calculated)	46.7029 W	Peddy
Generator efficiency (Calculated)	0.521796	efficiency_real
AC Power at the rectifier (Calculated)	1342.93 W	Pnom_rect
DC Power at the batteries (Calculated)	1208.64 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	5	No_bolts_hub
Mass of bearing hub	8344.46 g	BearingHubMass
Rotational losses (Calculated)	74.4803 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	1361.59 EUR	Totalcost
Total generator mass	177.902 kgr	TotalMass
Total generator volume	76.556 dm3	TotalVolume
Blade rotor mass	15.2925 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	111.675 EUR	Magcost
Magnet shipping cost	76.087 EUR	shippingcost
Copper mass	39.8499 kgr	mcu
Cost of copper	588.184 EUR	coppercost
Resin mass	15.6086 kgr	resinmass
Cost of resin	215.599 EUR	resincost
Resin volume	11476.9 cm3	ResinVolume
Total mass of one generator rotor	61.2219 kgr	TotalMassRotor
Cost of iron	142.857 EUR	ironcost
Surface area of moulds	1.9146 m2	woodS
Total cost of moulds	303.273 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-6306.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

2.00m

Aerodynamic coefficient:

0.37

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

8.50

Design TSR:

6.50

Air density:

1.225kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

Ferrite C8

Number of generator poles:

Magnet length:

45mm

Magnet width:

25mm

Magnet thickness:

20mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

8mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Rectangular

Winding fill factor:

Calculated

Stator thickness:

Calculated

Current density:

4.00A/mm2

System Inputs

System voltage:

24.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
