PMA-OPT-2 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by AHMEDNA8 on Fri, 24/04/2020 - 18:08

Duration:

00:01:06

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	114.65 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	380.824 RPM	n_nom
Nominal tip speed ratio	7.97192	tsr_nom

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	8 mm	hr
Magnet width-to-pole pitch ratio	0.132744	ai
Inner-to-outer magnet radius	0.924749	kd

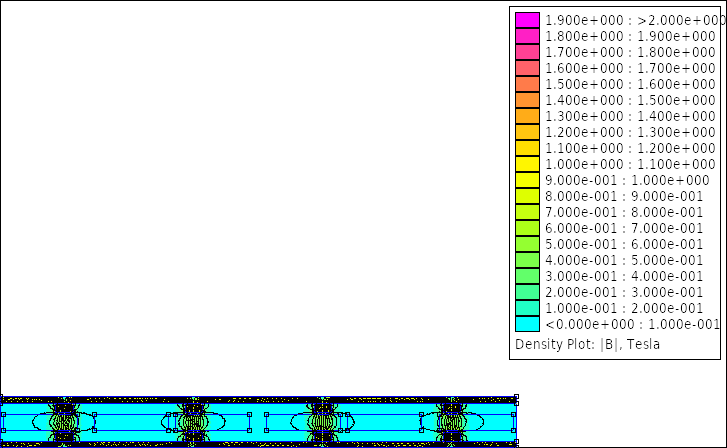

Flux density in airgap	0.449538 T	Bmax
Flux density on magnet surface	0.684478 T	Bmg
First harmonic of flux density in airgap	0.152611 T	Bp
Flux per pole (Calculated)	0.000410737 Wb	Flux_pole
Magnets on a rotor disk	16	magnet_num
Distance between magnets	124.775 mm	dist_magnet_Rin
Magnet mass	1440 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	6000 mm3	Vmag
Volume of all magnets	192000 mm3	VolumeMagnet
Remanent magnetic flux density	1.45 T	Br
Magnetic coercivity	1120020 A/m	Hc
Maximum Energy Product	422 KJ/m³	BHmax
Outer diameter	797.586 mm	Dout
Average radius	383.668 mm	Ravg
Inner radius	368.668 mm	Rin
Outer radius	398.793 mm	Rout
Effective outer radius	398.668 mm	Rout_eff
Mass of rotor disks	62.913 kgr	BackIronMass
Volume of rotor disks	7994.02 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	1.08356 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	18 mm	tw
Number of phases	3	nphase
Number of coils per phase	4	q
Total number of coils in stator	12	coil_num
Number of turns per coil	48	Nc
Copper wire diameter	1.8 mm	dc
Number of wires at hand	6	No_wires_at_hand
Winding fill factor	0.47	kf
Copper wire cross-sectional area	15.24 mm2	sc
Copper wire cross-sectional area (Calculated)	14.0417 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	2.54 mm²	sc_multi_wires
Copper wire diameter (Calculated)	4.22936 mm	dc_theor
Coil leg width	86.4681 mm	wc
Average length of coil turn	371.51 mm	lavg
Stator nominal temperature	40.3307 C°	tc_real
Stator surface area	7709.7 cm²	stator_surface_area
Heat coefficient	0.103902	cq_real
Current density	3.68548 A	Jmax_real
Resistivity of copper at nominal temperature	1.8084E-8 Ohm.m	pt
Resistance of a single coil	0.0211603 Ohm	Rc
Phase resistance	0.0846412 Ohm	Rphase
Phase inductance	0.000835342 H	Ls
Nagaoka constant	0.11821	Kn
Winding coefficient	0.95	kw
Volume of a single coil	578227 mm3	coil_volume
Weight of a single coil	2530.83 g	coil_weight_constr
Coil hole at Ravg	20 mm	coil_hole_Ravg
Coil hole at Rin	20 mm	coil_hole_Rin_constr
Coil hole at Rout	20 mm	coil_hole_Rout_constr
Coil mass for construction	32.9008 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	5.132 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	16.8926 V	EMF_nom
Current at the nominal wind speed	56.1668 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	50.7766 Hz	fnom
Generator power (Calculated)	1902.44 W	Pnom
Copper losses (Calculated)	801.055 W	Pcopper
Eddy current losses (Calculated)	71.1547 W	Peddy
Generator efficiency (Calculated)	0.66948	efficiency_real
AC Power at the rectifier (Calculated)	1712.19 W	Pnom_rect
DC Power at the batteries (Calculated)	1540.97 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	5	No_bolts_hub
Mass of bearing hub	8344.46 g	BearingHubMass
Rotational losses (Calculated)	67.0174 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	995.08 EUR	Totalcost
Total generator mass	102.93 kgr	TotalMass
Total generator volume	29.9776 dm3	TotalVolume
Blade rotor mass	15.2925 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	166.404 EUR	Magcost
Magnet shipping cost	11.5942 EUR	shippingcost
Copper mass	29.1551 kgr	mcu
Cost of copper	430.33 EUR	coppercost
Resin mass	9.42159 kgr	resinmass
Cost of resin	130.139 EUR	resincost
Resin volume	6927.64 cm3	ResinVolume
Total mass of one generator rotor	32.1765 kgr	TotalMassRotor
Cost of iron	77.3829 EUR	ironcost
Surface area of moulds	1.2047 m2	woodS
Total cost of moulds	190.824 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-6299.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

2.00m

Aerodynamic coefficient:

0.37

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

8.00

Design TSR:

6.50

Air density:

1.225kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N52

Number of generator poles:

Magnet length:

30mm

Magnet width:

20mm

Magnet thickness:

10mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

8mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Rectangular

Winding fill factor:

Calculated

Stator thickness:

Calculated

Current density:

4.00A/mm2

System Inputs

System voltage:

12.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

true

Simulation step:

Current step:

RPM Step:

Mesh size:

Automesh

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
