Clone of PMA-OPT-2 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by AHMEDNA8 on Fri, 24/04/2020 - 17:45

Duration:

00:01:26

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	114.65 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	450.819 RPM	n_nom
Nominal tip speed ratio	9.43714	tsr_nom

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	8 mm	hr
Magnet width-to-pole pitch ratio	0.0720089	ai
Inner-to-outer magnet radius	0.958464	kd

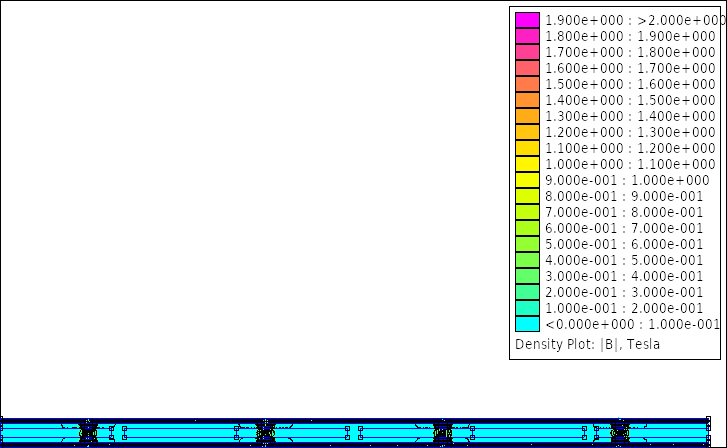

Flux density in airgap	0.386142 T	Bmax
Flux density on magnet surface	0.546023 T	Bmg
First harmonic of flux density in airgap	0.0617911 T	Bp
Flux per pole (Calculated)	0.00032751 Wb	Flux_pole
Magnets on a rotor disk	16	magnet_num
Distance between magnets	251.853 mm	dist_magnet_Rin
Magnet mass	720 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	3000 mm3	Vmag
Volume of all magnets	96000 mm3	VolumeMagnet
Remanent magnetic flux density	1.45 T	Br
Magnetic coercivity	1120020 A/m	Hc
Maximum Energy Product	422 KJ/m³	BHmax
Outer diameter	1444.67 mm	Dout
Average radius	707.268 mm	Ravg
Inner radius	692.268 mm	Rin
Outer radius	722.337 mm	Rout
Effective outer radius	722.268 mm	Rout_eff
Mass of rotor disks	206.407 kgr	BackIronMass
Volume of rotor disks	26227.1 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.761789 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	14 mm	tw
Number of phases	3	nphase
Number of coils per phase	4	q
Total number of coils in stator	12	coil_num
Number of turns per coil	61	Nc
Copper wire diameter	1.7 mm	dc
Number of wires at hand	7	No_wires_at_hand
Winding fill factor	0.4	kf
Copper wire cross-sectional area	15.89 mm2	sc
Copper wire cross-sectional area (Calculated)	15.6074 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	2.27 mm²	sc_multi_wires
Copper wire diameter (Calculated)	4.45893 mm	dc_theor
Coil leg width	174.818 mm	wc
Average length of coil turn	583.167 mm	lavg
Stator nominal temperature	30.3421 C°	tc_real
Stator surface area	24467.6 cm²	stator_surface_area
Heat coefficient	0.0420272	cq_real
Current density	2.94665 A	Jmax_real
Resistivity of copper at nominal temperature	1.74597E-8 Ohm.m	pt
Resistance of a single coil	0.0390873 Ohm	Rc
Phase resistance	0.156349 Ohm	Rphase
Phase inductance	0.00200215 H	Ls
Nagaoka constant	0.0553758	Kn
Winding coefficient	0.95	kw
Volume of a single coil	1427280 mm3	coil_volume
Weight of a single coil	5219.09 g	coil_weight_constr
Coil hole at Ravg	20 mm	coil_hole_Ravg
Coil hole at Rin	12.3336 mm	coil_hole_Rin_constr
Coil hole at Rout	28.04 mm	coil_hole_Rout_constr
Coil mass for construction	67.8482 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	5.132 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	20.2639 V	EMF_nom
Current at the nominal wind speed	46.8223 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	60.1092 Hz	fnom
Generator power (Calculated)	1585.93 W	Pnom
Copper losses (Calculated)	1028.3 W	Pcopper
Eddy current losses (Calculated)	26.5835 W	Peddy
Generator efficiency (Calculated)	0.556684	efficiency_real
AC Power at the rectifier (Calculated)	1427.33 W	Pnom_rect
DC Power at the batteries (Calculated)	1284.6 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	5	No_bolts_hub
Mass of bearing hub	8344.46 g	BearingHubMass
Rotational losses (Calculated)	208.065 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	1977.7 EUR	Totalcost
Total generator mass	286.773 kgr	TotalMass
Total generator volume	75.4028 dm3	TotalVolume
Blade rotor mass	15.2925 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	84.0851 EUR	Magcost
Magnet shipping cost	5.7971 EUR	shippingcost
Copper mass	60.6408 kgr	mcu
Cost of copper	895.059 EUR	coppercost
Resin mass	19.0054 kgr	resinmass
Cost of resin	262.519 EUR	resincost
Resin volume	13974.5 cm3	ResinVolume
Total mass of one generator rotor	103.563 kgr	TotalMassRotor
Cost of iron	253.88 EUR	ironcost
Surface area of moulds	3.04389 m2	woodS
Total cost of moulds	482.152 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-6291.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

2.00m

Aerodynamic coefficient:

0.37

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

8.00

Design TSR:

6.50

Air density:

1.225kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N52

Number of generator poles:

Magnet length:

30mm

Magnet width:

20mm

Magnet thickness:

5mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

8mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Keyhole

Winding fill factor:

Calculated

Stator thickness:

Calculated

Current density:

3.00A/mm2

System Inputs

System voltage:

12.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

true

Simulation step:

Current step:

RPM Step:

Mesh size:

Automesh

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
