PMA-OPT-2 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by AHMEDNA8 on Fri, 24/04/2020 - 17:44

Duration:

00:01:51

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	114.65 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	575.452 RPM	n_nom
Nominal tip speed ratio	12.0461	tsr_nom

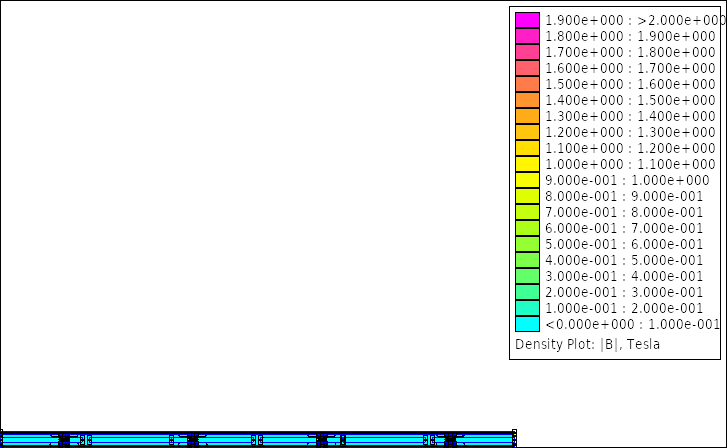

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	8 mm	hr
Magnet width-to-pole pitch ratio	0.0566753	ai
Inner-to-outer magnet radius	0.956456	kd
Flux density in airgap	0.384653 T	Bmax
Flux density on magnet surface	0.546169 T	Bmg
First harmonic of flux density in airgap	0.0496521 T	Bp
Flux per pole (Calculated)	0.000327604 Wb	Flux_pole
Magnets on a rotor disk	12	magnet_num
Distance between magnets	325.033 mm	dist_magnet_Rin
Magnet mass	540 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	3000 mm3	Vmag
Volume of all magnets	72000 mm3	VolumeMagnet
Remanent magnetic flux density	1.45 T	Br
Magnetic coercivity	1120020 A/m	Hc
Maximum Energy Product	422 KJ/m³	BHmax
Outer diameter	1378.08 mm	Dout
Average radius	673.965 mm	Ravg
Inner radius	658.965 mm	Rin
Outer radius	689.038 mm	Rout
Effective outer radius	688.965 mm	Rout_eff
Mass of rotor disks	187.815 kgr	BackIronMass
Volume of rotor disks	23864.7 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	0.768475 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	14 mm	tw
Number of phases	3	nphase
Number of coils per phase	3	q
Total number of coils in stator	9	coil_num
Number of turns per coil	108	Nc
Copper wire diameter	1.8 mm	dc
Number of wires at hand	5	No_wires_at_hand
Winding fill factor	0.44	kf
Copper wire cross-sectional area	12.7 mm2	sc
Copper wire cross-sectional area (Calculated)	12.2739 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	2.54 mm²	sc_multi_wires
Copper wire diameter (Calculated)	3.95418 mm	dc_theor
Coil leg width	224.889 mm	wc
Average length of coil turn	725.006 mm	lavg
Stator nominal temperature	30.7657 C°	tc_real
Stator surface area	29348.3 cm²	stator_surface_area
Heat coefficient	0.0448835	cq_real
Current density	2.89935 A	Jmax_real
Resistivity of copper at nominal temperature	1.75088E-8 Ohm.m	pt
Resistance of a single coil	0.107949 Ohm	Rc
Phase resistance	0.323846 Ohm	Rphase
Phase inductance	0.00583002 H	Ls
Nagaoka constant	0.0443757	Kn
Winding coefficient	0.95	kw
Volume of a single coil	2282640 mm3	coil_volume
Weight of a single coil	9054.73 g	coil_weight_constr
Coil hole at Ravg	20 mm	coil_hole_Ravg
Coil hole at Rin	9.76648 mm	coil_hole_Rin_constr
Coil hole at Rout	30.708 mm	coil_hole_Rout_constr
Coil mass for construction	90.5473 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	5.132 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	25.7675 V	EMF_nom
Current at the nominal wind speed	36.8217 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	57.5452 Hz	fnom
Generator power (Calculated)	1247.2 W	Pnom
Copper losses (Calculated)	1317.25 W	Pcopper
Eddy current losses (Calculated)	12.8828 W	Peddy
Generator efficiency (Calculated)	0.442062	efficiency_real
AC Power at the rectifier (Calculated)	1122.48 W	Pnom_rect
DC Power at the batteries (Calculated)	1010.23 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	5	No_bolts_hub
Mass of bearing hub	8344.46 g	BearingHubMass
Rotational losses (Calculated)	243.983 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	2204.74 EUR	Totalcost
Total generator mass	288.902 kgr	TotalMass
Total generator volume	68.611 dm3	TotalVolume
Blade rotor mass	15.2925 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	63.0638 EUR	Magcost
Magnet shipping cost	4.34783 EUR	shippingcost
Copper mass	80.0109 kgr	mcu
Cost of copper	1180.96 EUR	coppercost
Resin mass	20.5356 kgr	resinmass
Cost of resin	283.656 EUR	resincost
Resin volume	15099.7 cm3	ResinVolume
Total mass of one generator rotor	94.1776 kgr	TotalMassRotor
Cost of iron	231.013 EUR	ironcost
Surface area of moulds	2.81594 m2	woodS
Total cost of moulds	446.045 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-6290.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

2.00m

Aerodynamic coefficient:

0.37

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

8.00

Design TSR:

6.50

Air density:

1.225kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N52

Number of generator poles:

Magnet length:

30mm

Magnet width:

20mm

Magnet thickness:

5mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

8mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Keyhole

Winding fill factor:

Calculated

Stator thickness:

Calculated

Current density:

3.00A/mm2

System Inputs

System voltage:

12.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

true

Simulation step:

Current step:

RPM Step:

Mesh size:

Automesh

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
