Comet-ME 3m N42 24V 12 poles | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by Kostas on Tue, 17/04/2018 - 10:55

Duration:

00:01:01

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	167.197 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	246.081 RPM	n_nom
Nominal tip speed ratio	3.86347	tsr_nom

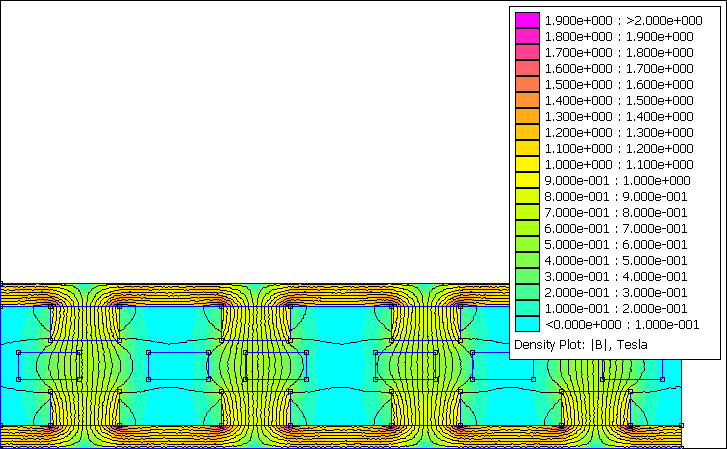

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	10 mm	hr
Magnet width-to-pole pitch ratio	0.405422	ai
Inner-to-outer magnet radius	0.720065	kd
Flux density in airgap	0.615418 T	Bmax
Flux density on magnet surface	0.715714 T	Bmg
First harmonic of flux density in airgap	0.467179 T	Bp
Flux per pole (Calculated)	0.000995411 Wb	Flux_pole
Magnets on a rotor disk	12	magnet_num
Distance between magnets	31.9541 mm	dist_magnet_Rin
Magnet mass	3726 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	20700 mm3	Vmag
Volume of all magnets	496800 mm3	VolumeMagnet
Remanent magnetic flux density	1.3 T	Br
Magnetic coercivity	1006580 A/m	Hc
Maximum Energy Product	342 KJ/m³	BHmax
Outer diameter	330.014 mm	Dout
Average radius	141.324 mm	Ravg
Inner radius	118.324 mm	Rin
Outer radius	165.007 mm	Rout
Effective outer radius	164.324 mm	Rout_eff
Mass of rotor disks	13.4635 kgr	BackIronMass
Volume of rotor disks	1710.74 cm3	BackIronVolume
Maximum flux density in the magnet rotor disk	1.31974 T	SaturMAX
Is the magnet rotor disk saturated?	No	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	12 mm	tw
Number of phases	3	nphase
Number of coils per phase	3	q
Total number of coils in stator	9	coil_num
Number of turns per coil	49	Nc
Copper wire diameter	1.5 mm	dc
Number of wires at hand	2	No_wires_at_hand
Winding fill factor	0.55	kf
Copper wire cross-sectional area	3.54 mm2	sc
Copper wire cross-sectional area (Calculated)	3.111 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	1.77 mm²	sc_multi_wires
Copper wire diameter (Calculated)	1.99074 mm	dc_theor
Coil leg width	26.2818 mm	wc
Average length of coil turn	234.525 mm	lavg
Stator nominal temperature	53.7584 C°	tc_real
Stator surface area	1109.47 cm²	stator_surface_area
Heat coefficient	0.174269	cq_real
Current density	5.27288 A	Jmax_real
Resistivity of copper at nominal temperature	1.89938E-8 Ohm.m	pt
Resistance of a single coil	0.0616585 Ohm	Rc
Phase resistance	0.184975 Ohm	Rphase
Phase inductance	0.000562964 H	Ls
Nagaoka constant	0.170518	Kn
Winding coefficient	0.95	kw
Volume of a single coil	73964.9 mm3	coil_volume
Weight of a single coil	378.53 g	coil_weight_constr
Coil hole at Ravg	30 mm	coil_hole_Ravg
Coil hole at Rin	30 mm	coil_hole_Rin_constr
Coil hole at Rout	30 mm	coil_hole_Rout_constr
Coil mass for construction	3.7853 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	10.264 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	15.1903 V	EMF_nom
Current at the nominal wind speed	18.666 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	24.6081 Hz	fnom
Generator power (Calculated)	632.24 W	Pnom
Copper losses (Calculated)	193.347 W	Pcopper
Eddy current losses (Calculated)	8.59269 W	Peddy
Generator efficiency (Calculated)	0.745883	efficiency_real
AC Power at the rectifier (Calculated)	569.016 W	Pnom_rect
DC Power at the batteries (Calculated)	512.114 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Calculated)	13.4605 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	505.979 EUR	Totalcost
Total generator mass	22.4971 kgr	TotalMass
Total generator volume	6.15866 dm3	TotalVolume
Blade rotor mass	6.45151 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	350.135 EUR	Magcost
Magnet shipping cost	30 EUR	shippingcost
Copper mass	3.27317 kgr	mcu
Cost of copper	48.312 EUR	coppercost
Resin mass	2.03438 kgr	resinmass
Cost of resin	28.1007 EUR	resincost
Resin volume	1495.87 cm3	ResinVolume
Total mass of one generator rotor	8.59476 kgr	TotalMassRotor
Cost of iron	16.5601 EUR	ironcost
Surface area of moulds	0.396917 m2	woodS
Total cost of moulds	62.8717 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-555.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

1.50m

Aerodynamic coefficient:

0.20

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

8.75

Design TSR:

7.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Double Rotor

Magnetic material:

NdFeB N42

Number of generator poles:

Magnet length:

46mm

Magnet width:

30mm

Magnet thickness:

15mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

10mm

Mechanical clearance:

5.00mm

Generator Stator Inputs

Select coil type:

Rectangular

Winding fill factor:

Calculated

Stator thickness:

User defined

Stator thickness:

12mm

Current density:

6.00A/mm2

System Inputs

System voltage:

24.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
