22 | Online Design Tools for Locally Manufactured Small Wind Turbines

Submitted by kimon007 on Tue, 30/10/2018 - 15:36

Duration:

00:01:17

Tabs

Results

Blade Rotor Outputs
Property	Value	Variable name
RPM at the cut-in wind speed (TSR)	298.567 RPM	n_cut_in
RPM at the nominal wind speed (TSR)	593.896 RPM	n_nom
Nominal tip speed ratio	3.72967	tsr_nom

Generator Rotor Outputs
Property	Value	Variable name
Rotor disk thickness	6 mm	hr
Magnet width-to-pole pitch ratio	0.678127	ai
Inner-to-outer magnet radius	0.704051	kd
Flux density in airgap	0.257356 T	Bmax
Flux density on magnet surface	0.390387 T	Bmg
First harmonic of flux density in airgap	0.257722 T	Bp
Flux per pole (Calculated)	0.000566182 Wb	Flux_pole
Magnets on a rotor disk	8	magnet_num
Distance between magnets	10.0529 mm	dist_magnet_Rin
Magnet mass	1656 g	MagnetMass
Magnet density	7.5 g/cm3	mag_density
Volume of a single magnet	13800 mm3	Vmag
Volume of all magnets	220800 mm3	VolumeMagnet
Remanent magnetic flux density	1.265 T	Br
Magnetic coercivity	982324 A/m	Hc
Maximum Energy Product	326 KJ/m³	BHmax
Outer diameter	207.891 mm	Dout
Average radius	86.3688 mm	Ravg
Inner radius	71.3688 mm	Rin
Outer radius	103.945 mm	Rout
Effective outer radius	101.369 mm	Rout_eff
Mass of rotor disks	1.60282 kgr	BackIronMass
Volume of rotor disks	203.662 cm3	BackIronVolume

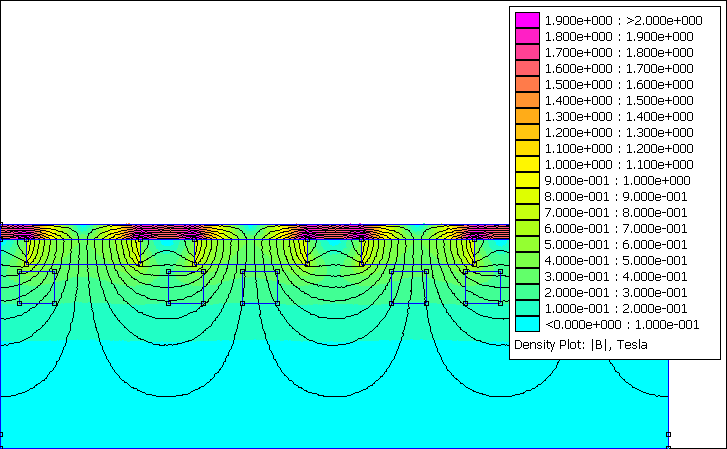

Maximum flux density in the magnet rotor disk	1.92041 T	SaturMAX
Is the magnet rotor disk saturated?	Yes	Saturation

Generator Stator Outputs
Property	Value	Variable name
Stator thickness	13 mm	tw
Number of phases	3	nphase
Number of coils per phase	2	q
Total number of coils in stator	6	coil_num
Number of turns per coil	180	Nc
Copper wire diameter	0.85 mm	dc
Number of wires at hand	1	No_wires_at_hand
Winding fill factor	0.55	kf
Copper wire cross-sectional area	0.57 mm2	sc
Copper wire cross-sectional area (Calculated)	0.554628 mm²	sc_theor
Copper wire cross-sectional area of a sinlge wire	0.57 mm²	sc_multi_wires
Copper wire diameter (Calculated)	0.840555 mm	dc_theor
Coil leg width	14.3497 mm	wc
Average length of coil turn	197.058 mm	lavg
Stator nominal temperature	69.0477 C°	tc_real
Stator surface area	339.325 cm²	stator_surface_area
Heat coefficient	0.243207	cq_real
Current density	5.83819 A	Jmax_real
Resistivity of copper at nominal temperature	1.99592E-8 Ohm.m	pt
Resistance of a single coil	1.24204 Ohm	Rc
Phase resistance	2.48408 Ohm	Rphase
Phase inductance	0.00455988 H	Ls
Nagaoka constant	0.235578	Kn
Winding coefficient	0.570628	kw
Volume of a single coil	36760.3 mm3	coil_volume
Weight of a single coil	182.759 g	coil_weight_constr
Coil hole at Ravg	46 mm	coil_hole_Ravg
Coil hole at Rin	46 mm	coil_hole_Rin_constr
Coil hole at Rout	46 mm	coil_hole_Rout_constr
Coil mass for construction	1.27931 kgr	mcu_constr
EMF at the cut-in wind speed (Calculated)	10.264 V	EMF_cut_in
EMF at the nominal wind speed (Calculated)	20.4492 V	EMF_nom
Current at the nominal wind speed	3.32777 A	Iac_nom
Terminal voltage at the nominal wind speed	11.2904 V	V_term_line
Nominal frequency	39.5931 Hz	fnom
Generator power (Calculated)	112.716 W	Pnom
Copper losses (Calculated)	82.5263 W	Pcopper
Eddy current losses (Calculated)	0.327014 W	Peddy
Generator efficiency (Calculated)	0.551621	efficiency_real
AC Power at the rectifier (Calculated)	101.444 W	Pnom_rect
DC Power at the batteries (Calculated)	91.2996 W	Pnom_dc

Generator Bearing Hub Outputs
Property	Value	Variable name
Number of bolts on hub	4	No_bolts_hub
Mass of bearing hub	3708.65 g	BearingHubMass
Rotational losses (Calculated)	8.76635 W	Prot

Costs, Mass and Volume
Property	Value	Variable name
Total generator cost	228.547 EUR	Totalcost
Total generator mass	5.50208 kgr	TotalMass
Total generator volume	1.0862 dm3	TotalVolume
Blade rotor mass	0.412897 kgr	blade_rotor_mass
Softwood density	500 kgr/m³	softwood_density
Cost of magnets	153.703 EUR	Magcost
Magnet shipping cost	13.3333 EUR	shippingcost
Copper mass	1.0845 kgr	mcu
Cost of copper	16.0072 EUR	coppercost
Resin mass	1.15875 kgr	resinmass
Cost of resin	16.0058 EUR	resincost
Resin volume	852.026 cm3	ResinVolume
Total mass of one generator rotor	3.25882 kgr	TotalMassRotor
Cost of iron	1.97147 EUR	ironcost
Surface area of moulds	0.257953 m2	woodS
Total cost of moulds	40.8597 EUR	woodcost

Output files

Octave/Matlab variable file:

simulation-2732.mat

Input parameters

Blade Rotor Inputs

Turbine radius:

0.60m

Aerodynamic coefficient:

0.30

Cut-in wind speed:

3.00m/s

Nominal wind speed:

10.00m/s

Cut-in TSR:

6.25

Design TSR:

7.00

Air density:

1.204kg/m³

Generator Rotor Inputs

AFPM rotor topology:

Single Rotor

Magnetic material:

NdFeB N40

Number of generator poles:

Magnet length:

30mm

Magnet width:

46mm

Magnet thickness:

10mm

Rotor disk thickness:

User Defined

Rotor disk thickness:

6mm

Mechanical clearance:

3.00mm

Generator Stator Inputs

Select coil type:

Rectangular

Winding fill factor:

User defined

Winding fill factor:

0.55

Stator thickness:

13mm

Current density:

6.00A/mm2

System Inputs

System voltage:

24.00V

Nominal voltage:

24.00V

Transmission cable losses:

10.00%

Rectifier losses:

10.00%

Financial

Copper price:

12.00€/kg

Iron price:

1.00€/kg

Resin price:

11.23€/kg

Plywood price:

17.60 €/m²

Simulation Inputs

Also run UserAFPM:

false

Constants

Copper resistivity:

1.678E-8 Ω·m

Copper density:

8.94g/cm³

Iron density:

7.87g/cm³

Resin density:

1.36g/cm³
